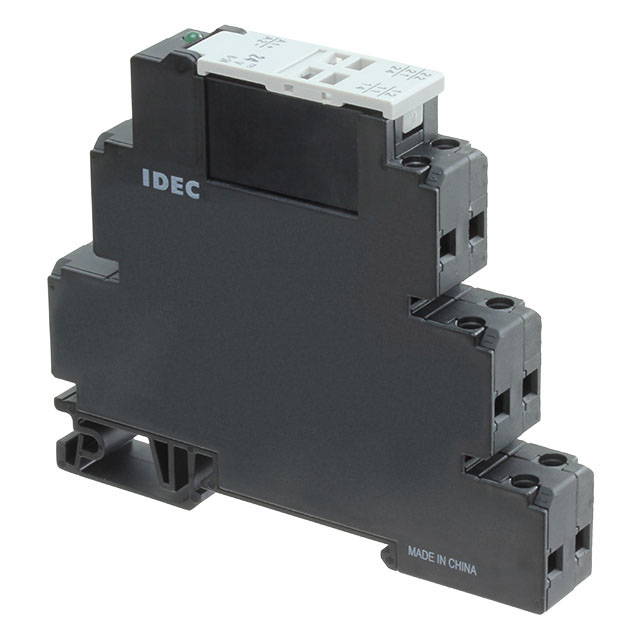

RV8H-1L Series
Manufacturer: IDEC
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Contact Material | Must Release Voltage | Coil Type | Operate Time | Switching Voltage | Approval Agency | Relay Type | Contact Form | Features | Must Operate Voltage | Contact Rating (Current) | Coil Voltage | Release Time | Termination Style | Mounting Type | Coil Voltage | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 1.2 kOhms | 55 °C | -40 C | 0.02 A | Silver Nickel (AgNi) | 1.68 VDC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 19.2 VDC | 16 A | 24 VDC | 15 ms | Screw Terminal | DIN Rail | |||
IDEC | 1.14 kOhms | 55 °C | -40 C | 21 mA | Silver Nickel (AgNi) | 1.68 VAC/DC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 19.2 VAC | 16 A | 24 VAC | 15 ms | Screw Terminal | DIN Rail | |||
IDEC | 414 Ohms | 55 °C | -40 C | 29 mA | Silver Nickel (AgNi) | 0.84 VAC/DC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 9.6 VAC/DC | 16 A | 15 ms | Screw Terminal | DIN Rail | 12 VAC | 12 VDC | ||
IDEC | 375 Ohms | 55 °C | -40 C | 32 mA | Silver Nickel (AgNi) | 0.84 VDC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 9.6 VDC | 16 A | 12 VDC | 15 ms | Screw Terminal | DIN Rail | |||
IDEC | 43.6 kOhms | 55 °C | -40 C | 5.5 mA | Silver Nickel (AgNi) | 16.1 VAC/DC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 184 VAC | 16 A | 15 ms | Screw Terminal | DIN Rail | 230 VAC | 230 VDC | ||
IDEC | 6.67 kOhms | 55 °C | -40 C | 9 mA | Silver Nickel (AgNi) | 4.2 VAC/DC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 48 VAC/DC | 16 A | 60 VAC | 15 ms | Screw Terminal | DIN Rail | |||
IDEC | 5.3 kOhms | 55 °C | -40 C | 9 mA | Silver Nickel (AgNi) | 3.36 VAC/DC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 38.4 VAC | 16 A | 15 ms | Screw Terminal | DIN Rail | 48VAC/DC | |||
IDEC | 21.5 kOhms | 55 °C | -40 C | 5.8 mA | Silver Nickel (AgNi) | 8.4 VAC | Non Latching | 15 ms | 250 VAC | CE cULus | General Purpose | SPDT (1 Form C) | Socket Included | 96 VAC | 16 A | 15 ms | Screw Terminal | DIN Rail | 120VAC/DC |
