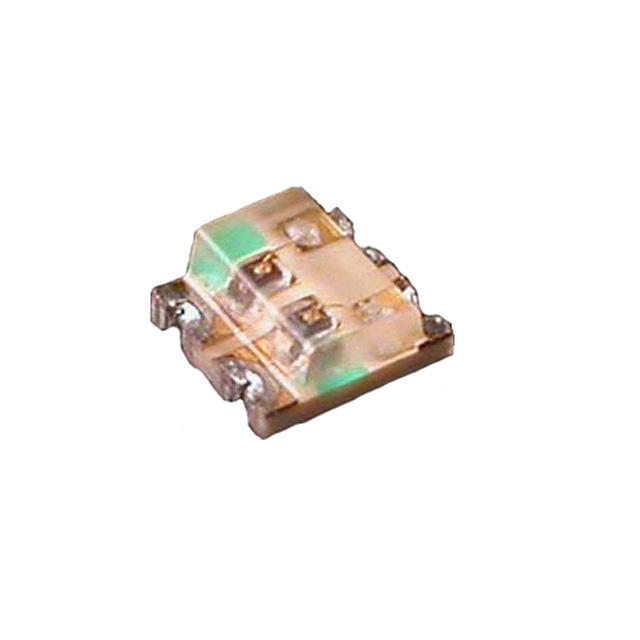

APTB1615 Series

Catalog

LED GREEN/RED CLEAR CHIP SMD

Part	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Viewing Angle	Lens Style	Wavelength - Peak	Height (Max) [z]	Package / Case	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Color	Mounting Type	Configuration	Lens Transparency	Lens Color	Wavelength - Dominant	Current - Test	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Kingbright APTB1615ESGC-F01	1.5 mm	1.6 mm	Chip LED	120 °	Rectangle with Flat Top	565 nm 627 nm	0.7 mm	0606 (1616 Metric)	7 mcd 12 mcd	20 mA	20 mA	1.2 mm	1.5 mm	2 V 2.2 V	568 nm 617 nm	Green Red	Surface Mount	Independent	Clear	Colorless
Kingbright APTB1615SURKCGKC-F01	1.5 mm	1.6 mm	Chip LED	120 °	Rectangle with Flat Top	574 nm 645 nm	0.7 mm	0606 (1616 Metric)	50 mcd 80 mcd	20 mA	20 mA	1.2 mm	1.5 mm	1.95 V 2.1 V		Green Red	Surface Mount	Independent	Clear	Colorless	570nm Green 630nm Red
Kingbright APTB1615YSGC-F01	1.5 mm	1.6 mm	Chip LED	120 °	Rectangle with Flat Top		0.7 mm	0606 (1616 Metric)				1.2 mm	1.5 mm	2.1 V 2.2 V		Green Yellow	Surface Mount	Independent	Clear	Colorless	568nm Green 588nm Yellow	20 mA 20 mA	565nm Green 590nm Yellow	12mcd Green 8mcd Yellow

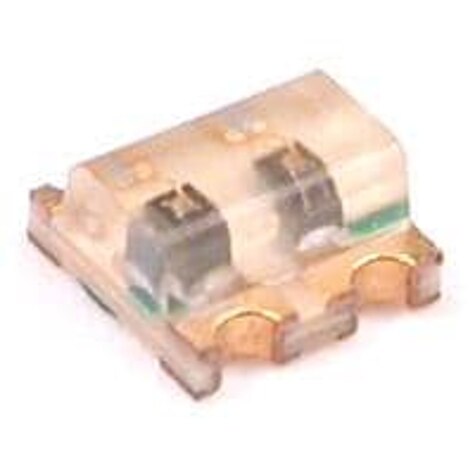

Kingbright APTB1615SYKCGKC-F01	1.5 mm	1.6 mm	Chip LED	120 °	Rectangle with Flat Top		0.7 mm	0606 (1616 Metric)	50 mcd 120 mcd			1.2 mm	1.5 mm		570 nm 590 nm	Green Yellow	Surface Mount	Independent	Clear	Colorless		20 mA 20 mA	574nm Green 590nm Yellow		2.1 V	2 V
