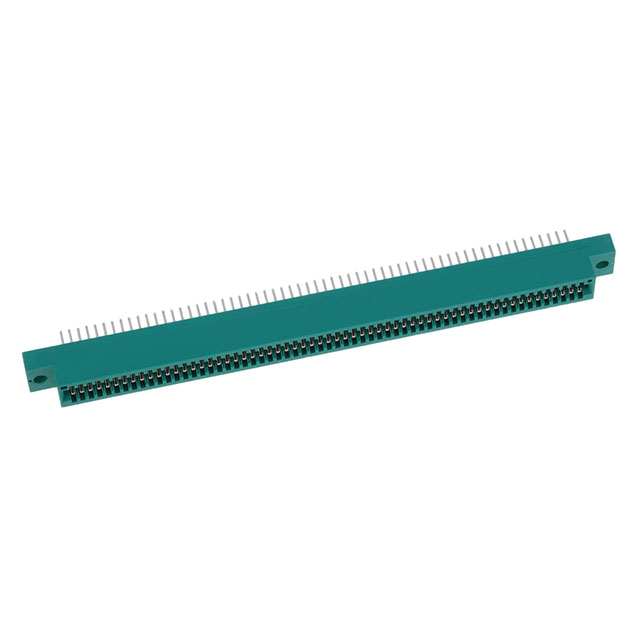

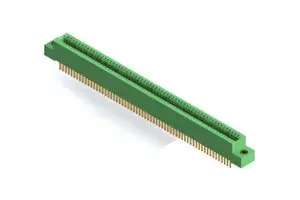

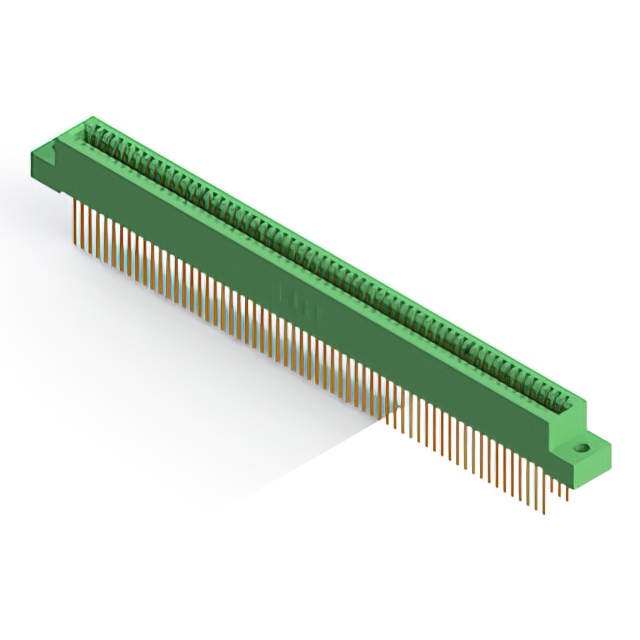

325-122 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 122POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Color | Gender | Pitch | Pitch | Card Thickness | Card Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions/Bay/Row | Contact Type | Number of Rows [custom] | Number of Positions | Read Out | Termination | Flange Feature | Contact Finish | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Female | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole | 61 | Cantilever | 2 | 122 | Dual | Solder | Flush Mount M3 Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Female | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole | 61 | Cantilever | 2 | 122 | Dual | Wire Wrap | Flush Mount Top Opening Unthreaded | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Copper Alloy | 0.16 " | 4.06 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Female | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole | 61 | Cantilever | 2 | 122 | Dual | Solder | Flush Mount Top Opening Unthreaded | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Copper Alloy | 0.16 " | 4.06 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Female | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole | 61 | Cantilever | 2 | 122 | Dual | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Female | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole | 61 | Cantilever | 2 | 122 | Dual | Solder Eyelet(s) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Copper Alloy | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Female | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole | 61 | Cantilever | 2 | 122 | Dual | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Copper Alloy | 0.16 " | 4.06 mm |
