BC6 Series
Barrier Terminal Blocks BC6-Q308-10= BC6 ASSEMBLY
Manufacturer: TE Connectivity AMP Connectors
Catalog
Barrier Terminal Blocks BC6-Q308-10= BC6 ASSEMBLY
Beta
⌘K
Barrier Terminal Blocks BC6-Q308-10= BC6 ASSEMBLY
Barrier Terminal Blocks BC6-Q308-10= BC6 ASSEMBLY
Barrier Terminal Blocks BC6-Q308-10= BC6 ASSEMBLY
| Part | Terminal Screw Finish | Mounting Type | Material - Insulation | Terminal Screw Material | Material Flammability Rating | Operating Temperature | Voltage Rating | Number of Circuits | Pitch | Pitch | Current Rating (Amps) | Barrier Type | Bottom Termination | Bottom Termination | Wire Gauge [Max] | Wire Gauge [Min] | Number of Rows | Number of Wire Entries [custom] | Terminal Block Type | Color | Top Termination | Number of Wire Entries | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 7 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | 7 | Barrier Block | Black | Screws with Captive Plate | ||
TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 6 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 6 | Flange | |

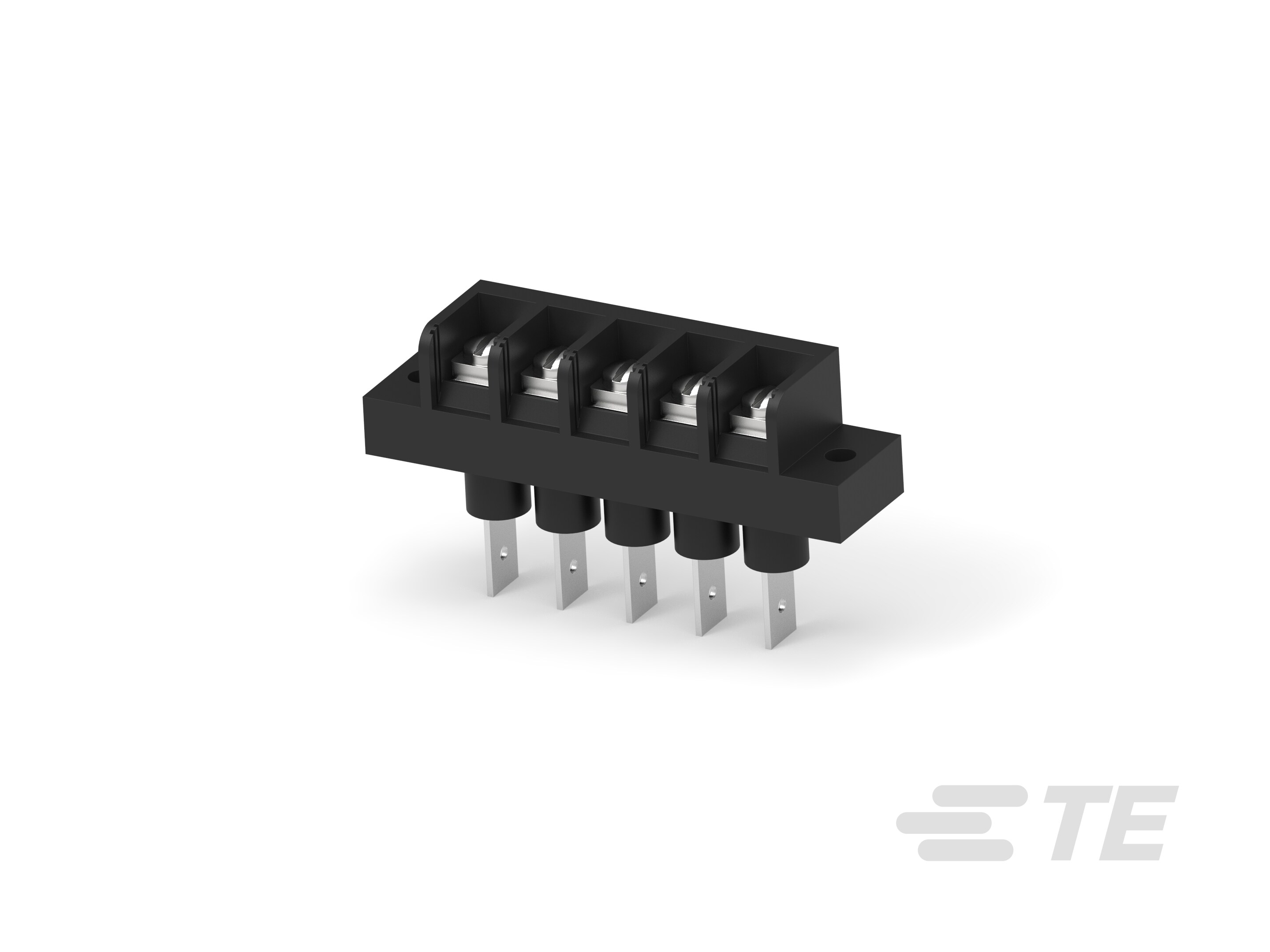

 TE Connectivity AMP Connectors | 300 VDC | 5 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 5 | Flange | |||||||
TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 14 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 14 | ||
TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 13 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 13 | Flange | |
TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 10 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 10 | Flange | |
TE Connectivity AMP Connectors | 300 VDC | 10 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.187 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws | 10 | Flange | |||||||

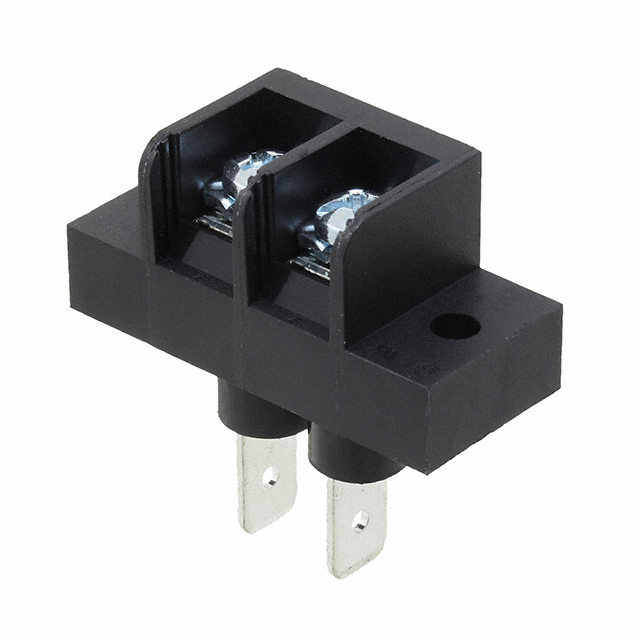

 TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 2 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | 0.25 in | Insulated Quick Connect | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 2 | Flange | |
TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 5 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | Solder Turret Insulated | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 5 | Flange | ||
TE Connectivity AMP Connectors | Clear Chromate Zinc | Chassis Panel | Thermoplastic | Steel | UL94 V-0 | 105 C | 300 VDC | 4 | 9.53 mm | 0.375 in | 20 A | 3 Wall (Tri) | Insulated Wire Wrap | 22 AWG | 12 AWG | 1 | Barrier Block | Black | Screws with Captive Plate | 4 |
