SFH4725 Series

Catalog

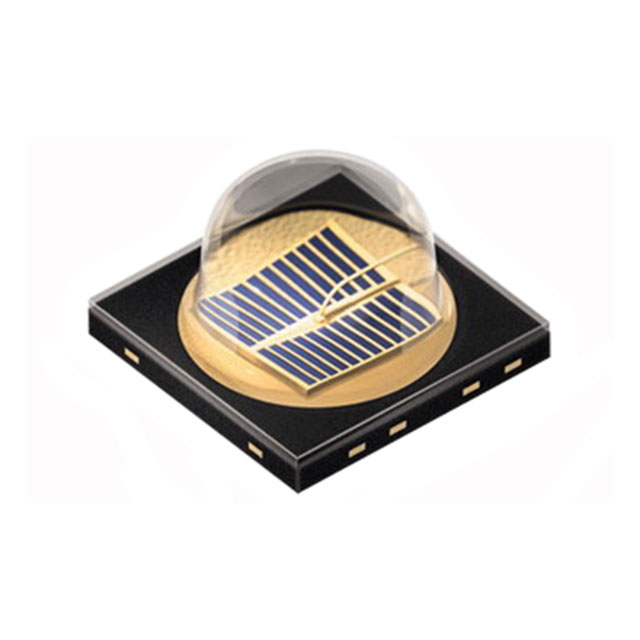

EMITTER IR 950NM 1A SMD

Part	Viewing Angle	Radiant Intensity (Ie) Min @ If	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Current - DC Forward (If) (Max) [Max]	Mounting Type	Orientation	Voltage - Forward (Vf) (Typ)	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
ams-OSRAM USA INC. SFH 4725S	90 °	320 mW/sr	125 °C	-40 °C	Infrared (IR)	3-SMD No Lead	1 A	Surface Mount	Top View	2.75 V	950 nm
ams-OSRAM USA INC. SFH 4725AS A01 C1021	80 °	1 A	125 °C	-40 C	Infrared (IR)	3-SMD No Lead	1.5 A	Surface Mount	Top View	2.65 V	950 nm	560 mW/sr
ams-OSRAM USA INC. SFH 4725AS A01	80 °	1 A	125 °C	-40 C	Infrared (IR)	3-SMD No Lead	1.5 A	Surface Mount	Top View	2.65 V	950 nm	560 mW/sr
