9609-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

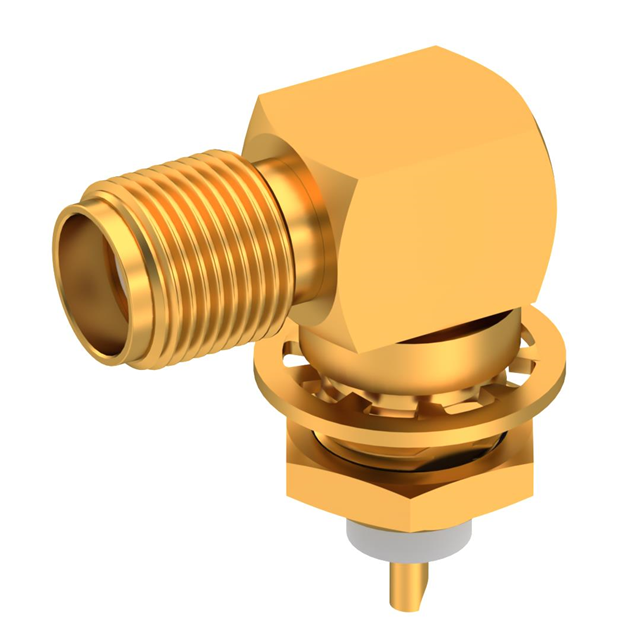

SMA / RIGHT ANGLE JACK RECEPTACL
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Shield Termination | Connector Style | Housing Color | Contact Termination | Number of Ports | Fastening Type | Impedance | Frequency - Max [Max] | Mounting Feature | Mounting Type | Features | Connector Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Gold | Stainless Steel | -65 ░C | 165 °C | Gold | Solder | SMA | Gold | Solder Cup | 1 | Threaded | 50 Ohms | 18 GHz | Bulkhead - Rear Side Nut | Panel Mount Right Angle | Extended Insulation | Female Socket Jack | Beryllium Copper |
