Series T Series
Manufacturer: ODU
Beta
⌘K

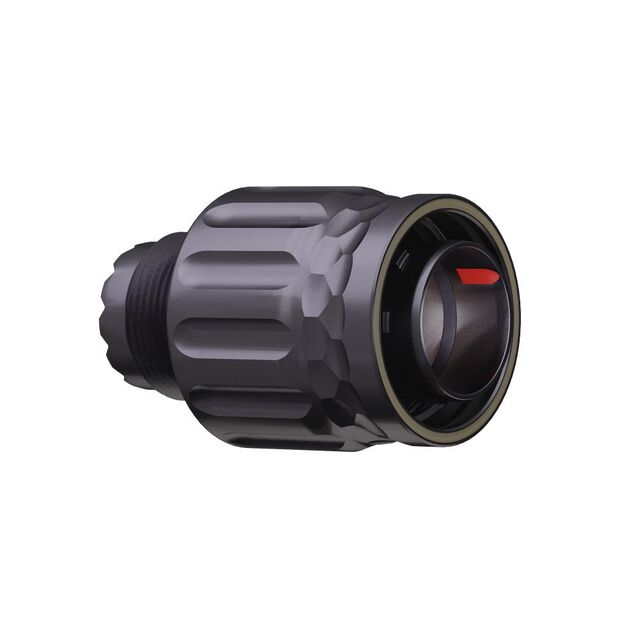

STANDARD CIRCULAR CONNECTOR SCREW-LOCK PLUG FOR BACKSHELL, SZ 09, IP6K9K, 20 CONTACTS, A L BRW KEY
| Part | Features | Ingress Protection | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Orientation | Number of Positions | Primary Material | Shell Finish | Shell Size - Insert | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Connector Type | Insert Material | Fastening Type | Shell Material | Contact Material | Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Backshell Coupling Nut | IP6K9K | Gold | -65 ░C | 175 °C | Shielded | 2 A | A | 20 | Metal | Tin Nickel | 9 | 3 mm | 7.6 mm | 0.299 in | 0.118 in | Plug Male Pins | Polyetheretherketone (PEEK) | Threaded | Aluminum | Copper Alloy | Silver | Free Hanging (In-Line) |
