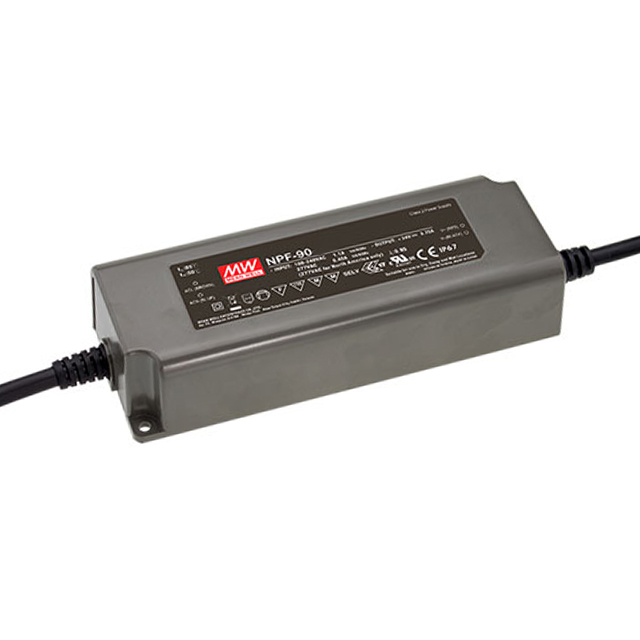

NPF-90 Series

Catalog

LED DRIVER CC AC/DC

Part	Mounting Type	Current - Output (Max) [Max]	Ratings	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Outputs	Type	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Input (Min) [Min]	Dimming	Voltage - Isolation	Efficiency	Standard Number

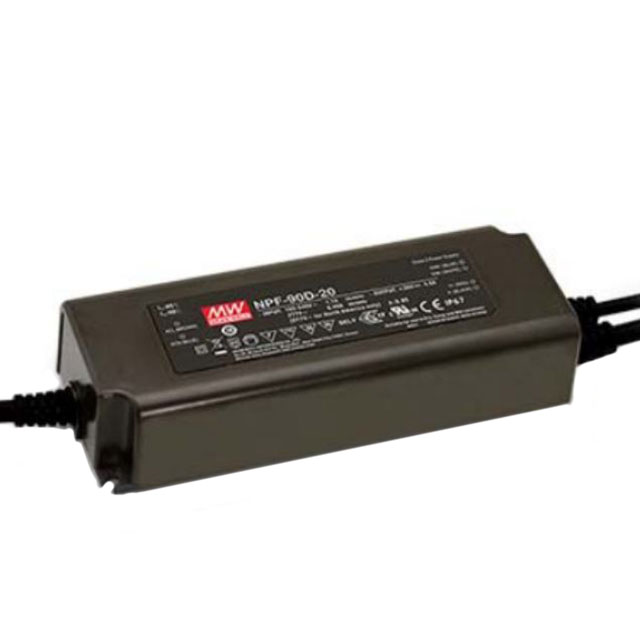

MEAN WELL USA Inc. NPF-90D-20BE	Chassis Mount	4.5 A	IP67	CB CCC CE cURus EAC ENEC	305 VAC	12 V	20 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC	Analog PWM	3750 VDC	90 %	UL 8750
MEAN WELL USA Inc. NPF-90-54	Chassis Mount	1.67 A	IP67	CB CCC CE cURus ENEC	305 VAC	32.4 V	54 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current Voltage	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC		3750 VDC	90.5 %
MEAN WELL USA Inc. NPF-90D-54	Chassis Mount	1.67 A	IP67	CB CCC CE cURus ENEC	305 VAC	32.4 V	54 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC	Analog PWM	3750 VDC	90 %
MEAN WELL USA Inc. NPF-90D-36	Chassis Mount	2.5 A	IP67	CB CCC CE cURus ENEC	305 VAC	21.6 V	36 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC	Analog PWM	3750 VDC	90 %
MEAN WELL USA Inc. NPF-90-48	Chassis Mount	1.88 A	IP67	CB CCC CE cURus ENEC	305 VAC	28.8 V	48 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current Voltage	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC		3750 VDC	90.5 %
MEAN WELL USA Inc. NPF-90-30	Chassis Mount	3 A	IP67	CB CCC CE cURus ENEC	305 VAC			AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current Voltage	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC		3750 VDC
MEAN WELL USA Inc. NPF-90-42	Chassis Mount	2.15 A	IP67	CB CCC CE cURus ENEC	305 VAC	25.2	42 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current Voltage	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC		3750 VDC	90.5 %
MEAN WELL USA Inc. NPF-90-12	Chassis Mount	7.5 A	IP67	CB CCC CE cURus ENEC	305 VAC	7.2 V	12 V	AC DC Converter	85 °C	-40 C	Wire Leads	1	Constant Current Voltage	OCP OTP OVP SCP	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	90 VAC		3750 VDC	89 %
