BSC023 Series
Manufacturer: INFINEON
Beta
⌘K

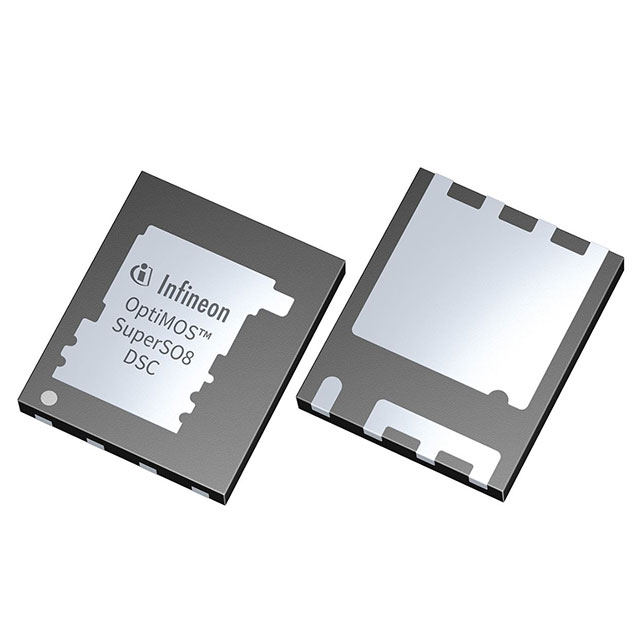

OPTIMOS™ 5 POWER MOSFETS 80 V IN SUPERSO8 DSC PACKAGE WITH DUAL-SIDE COOLING FOR ENHANCED THERMAL PERFORMANCE
| Part | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs (Max) | FET Type | Technology | Vgs(th) (Max) @ Id | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 80 V | 6800 pF | 175 °C | -55 °C | Surface Mount | 98 nC | 20 V | N-Channel | MOSFET (Metal Oxide) | 3.8 V | 202 A | 188 W | 8-PowerWDFN | 6 V 10 V | 2.3 mOhm | PG-WSON-8-2 |
