Durable Series
Manufacturer: DB Unlimited
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

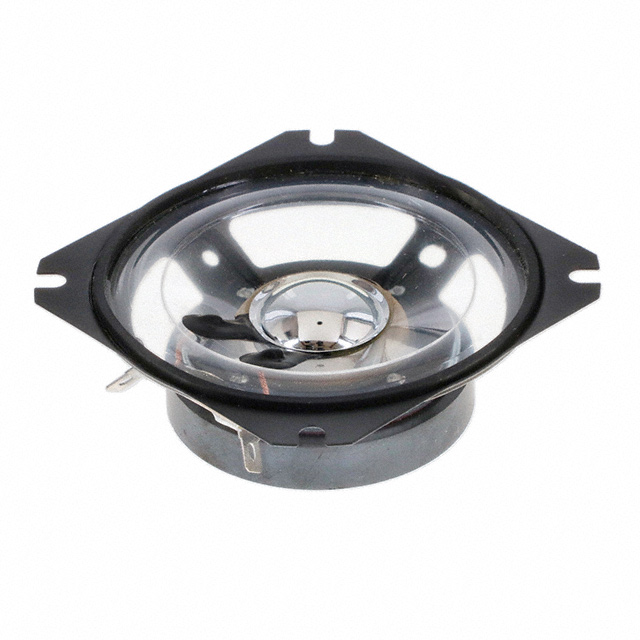

SPEAKERS & TRANSDUCERS 87X87X31, 8 OHM, ROUND IP67 SPEAKER WITH SOLDER EYELETS
| Part | Termination | Technology | Size / Dimension Width | Size / Dimension Length | Type | Material - Cone | Shape | Efficiency - Testing Power | Efficiency - Testing Length | Port Location | Efficiency - dBA | Power - Rated | Impedance | Frequency Range (Max) | Frequency Range (Min) | Height - Seated (Max) | Frequency - Self Resonant | Ingress Protection Description | Ingress Protection IP Rating | Efficiency - Type | Power - Max | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DB Unlimited | Quick Connect | Magnetic | 3.425 in | 3.425 in | General Purpose | Polyethylene Terephthalate (PET) | Round Square Frame | 1 W | 100 mm | Top | 93 dBA | 10 W | 8 Ohm | 7 kHz | 500 Hz | 1.22 in | 500 Hz | Dust Tight Waterproof | IP67 | Sound Pressure Level (SPL) | 16 VA | 60 °C | -20 °C |
