087937 Series

Manufacturer: Molex

Catalog

CONN HDR 8POS 0.1 STACK T/H TIN

Part	Number of Positions	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Termination	Pitch [x]	Pitch [x]	Number of Positions	Length - Tail	Length - Tail	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing	Row Spacing

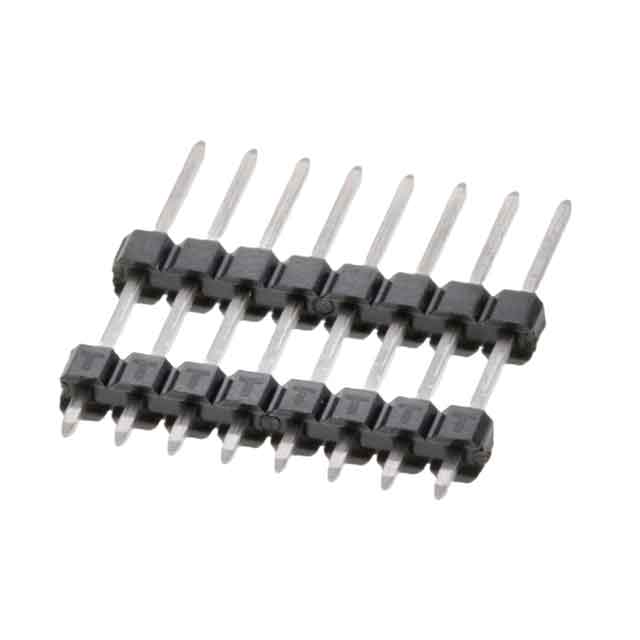

Molex 0879370800	8	Through Hole	0.472 in	12 mm	2.54 Ám	100 Áin	1	0.118 in	3 mm	Tin	0.945 in	24 mm	8.992 mm	0.354 in	Black	Solder	2.54 mm	0.1 in
Molex 0879371601		Through Hole	0.75 in	19.05 mm	0.38 Ám	15 Áin	1			Gold			11.963 mm	0.471 in	Black	Solder	2.54 mm	0.1 in	16	2.8 mm	0.11 in	33.782 mm	1.33 in
Molex 0879371206	12	Through Hole	0.433 in	11 mm	2.54 Ám	100 Áin	1	0.149 in		Tin			3.785 mm	0.149 in	Black	Solder	2.54 mm	0.1 in		3.785 mm		18.542 mm	0.73 in

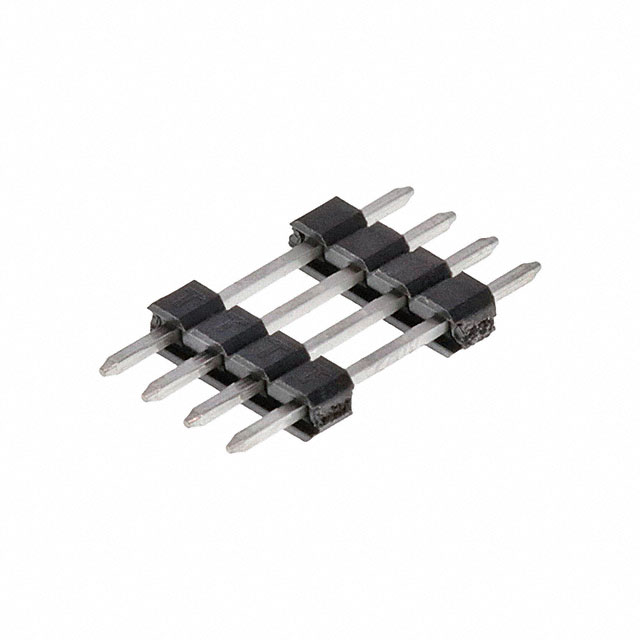

Molex 0879370406	4	Through Hole	0.433 in	11 mm	2.54 Ám	100 Áin	1	0.149 in		Tin			3.785 mm	0.149 in	Black	Solder	2.54 mm	0.1 in		3.785 mm		18.542 mm	0.73 in
Molex 0879370203	2	Through Hole	0.614 in	15.596 mm	2.5 µm	98.4 µin	2			Tin					Black	Solder	2 mm	0.079 in						2 mm	0.079 in
Molex 0879371208
