ML50 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 24V 50W

Part	Standard Number	Applications	Features	Approval Agency	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Power (Watts)	Input Type	Voltage - Output 1	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]

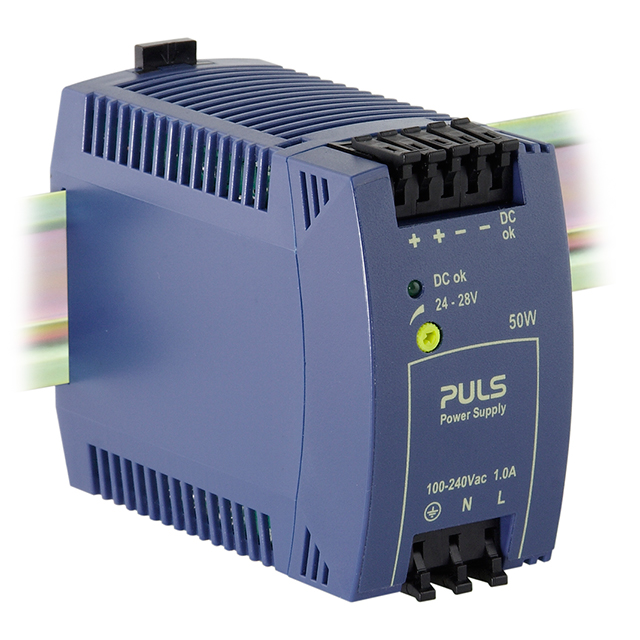

PULS, LP ML50.109	508 60950-1 61010-2-201 Class 2 Class I Div 2 F47	ITE (Commercial)	Adjustable Output Conformal Coating Load Sharing Universal Input	CSA EAC IEC NEC SEMI UL	1	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	89 %	50 W	AC	24 V	2.1 A	100 VAC	240 VAC

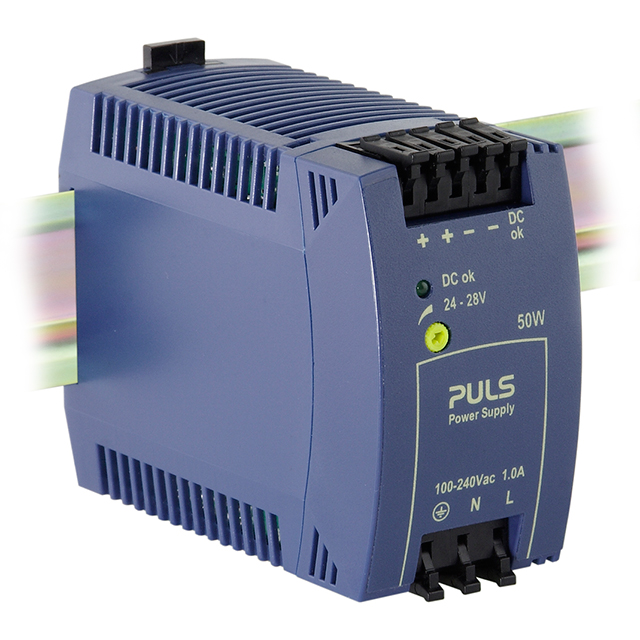

PULS, LP ML50.100	508 60601 60950-1 61010-2-201 Class 2 Class I Div 2 F47	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	ABS CSA DNV GL EAC IEC NEC SEMI UL	1	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	89 %	50 W	AC	24 V	2.1 A	85 VAC	264 VAC	500 V	70 °C	0 °C

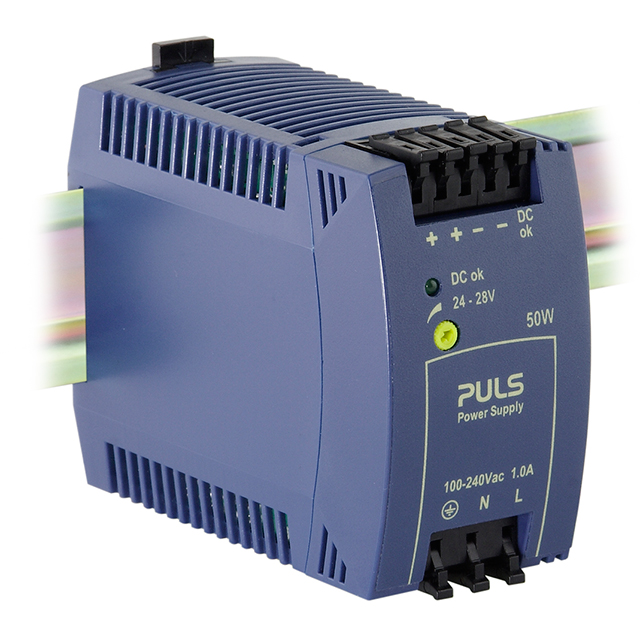

PULS, LP ML50.101	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	CSA EAC IEC NEC UL	1	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	88.5 %	50 W	AC	24 V	2.1 A	85 VAC	264 VAC	500 V	70 °C	-10 °C

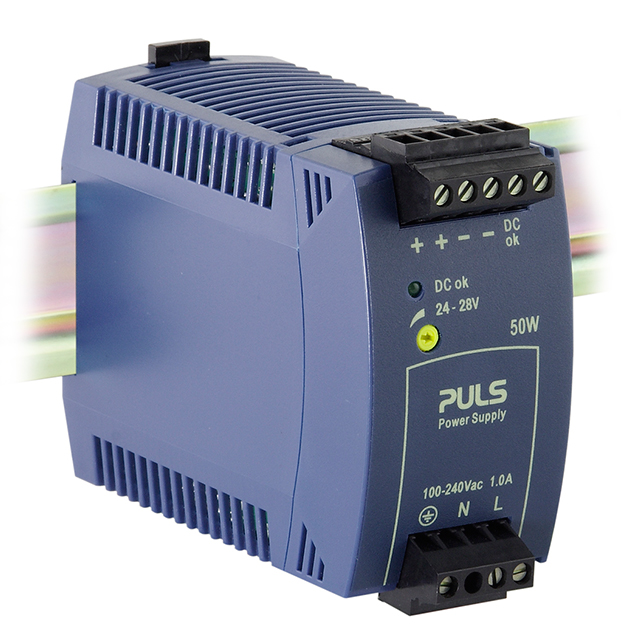

PULS, LP ML50.111	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	ABS CSA DNV GL EAC IEC NEC UL	1	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	88.5 %	50 W	AC	24 V	2.1 A	85 VAC	264 VAC		70 °C	-10 °C

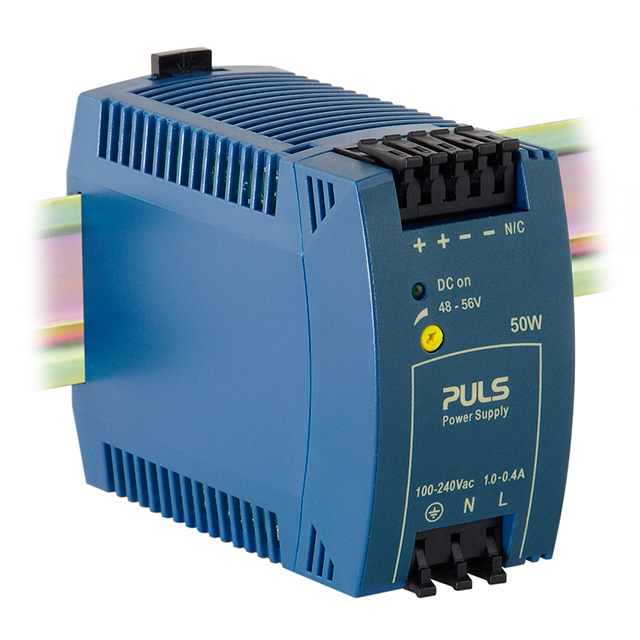

PULS, LP ML50.105	508 60950-1 61010-2-201 Class 2	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	EAC IEC NEC UL	1	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	90.3 %	50 W	AC	48 V	1.05 A	85 VAC	264 VAC		70 °C	0 °C

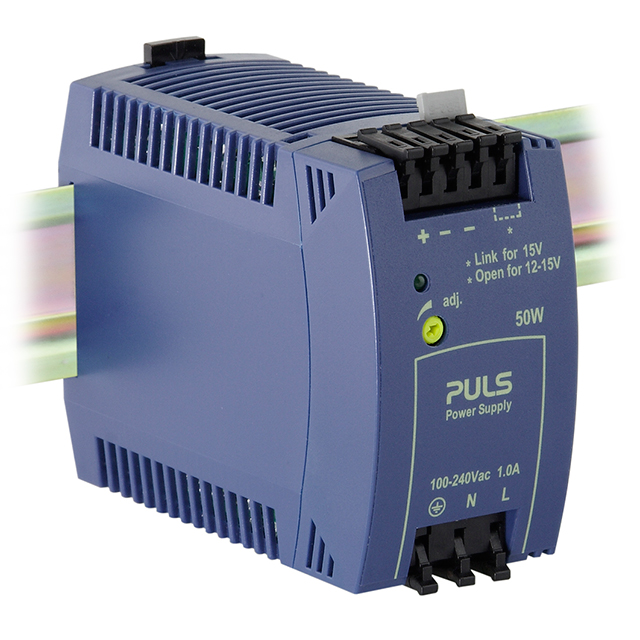

PULS, LP ML50.102	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	CSA EAC IEC NEC UL	1	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	90 %	50 W	AC	12 V	4.2 A	85 VAC	264 VAC		70 °C	0 °C
