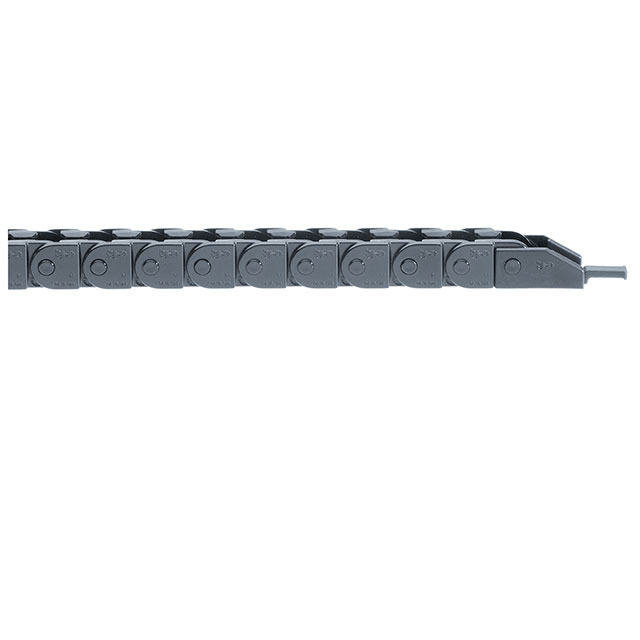

E08-50 Series
Manufacturer: Igus
Beta
⌘K
CABLE CARRIER .76H X 2.29W 1=1FT
| Part | Cavity Width | Cavity Width [y] | Outer Height [z] | Outer Height [z] | Loading Side | Outer Width | Outer Width | Minimum Bend Radius [radius] | Minimum Bend Radius [radius] | Link Pitch | Link Pitch | Material | Frame Type | Operating Temperature [Max] | Operating Temperature [Min] | Cavity Height | Cavity Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Igus | 50.04 mm | 1.97 in | 19.3 mm | 0.76 in | Inside and Outside Bend | 2.29 " | 58.17 mm | 38.1 mm | 1.5 " | 0.79 in | 20.07 mm | Igumid G | Open | 80 °C | -40 C | 14.48 mm | 0.57 in |
