8282-2SG Series

Catalog

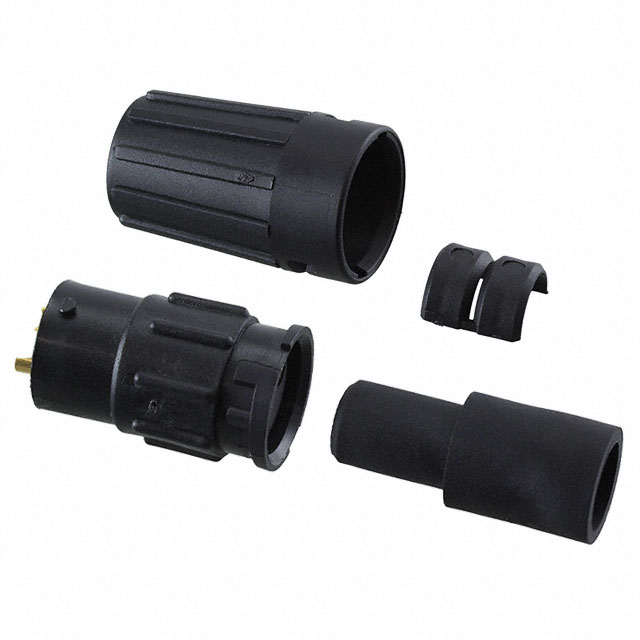

CONNECTORS, CIRCULAR, SOCKET, MINI-CON-X SERIES, 2 CONTACTS

Part	Current Rating (Amps)	Features	Contact Material	Fastening Type	Connector Type	Applications	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Color	Shielding	Orientation	Primary Material	Ingress Protection	Voltage Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Backshell Material, Plating	Mounting Type
SWITCHCRAFT/CONXALL 8282-2SG-315	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	3.81 mm	0.15 "	4.32 mm	0.17 in	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-516	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	4.06 mm	0.16 "	4.57 mm	0.18 "	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-522	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	5.59 mm	0.22 in	6.35 mm	0.25 in	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-318	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	4.57 mm	0.18 "	5.08 mm	0.2 "	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-3DC	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation					Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-321	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	5.33 mm	0.21 in	5.84 mm	0.23 in	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-513	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	3.3 mm	0.13 "	3.81 mm	0.15 in	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 8282-2SG-519	Varies by Wire Gauge	Backshell	Brass	Bayonet Lock	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	4.83 mm	0.19 in	5.33 mm	0.21 in	Black	Unshielded	Keyed	Plastic	Weathertight	600 V	2	115 °C	-40 C	Gold	Nylon Polyamide (PA)	Free Hanging (In-Line)
