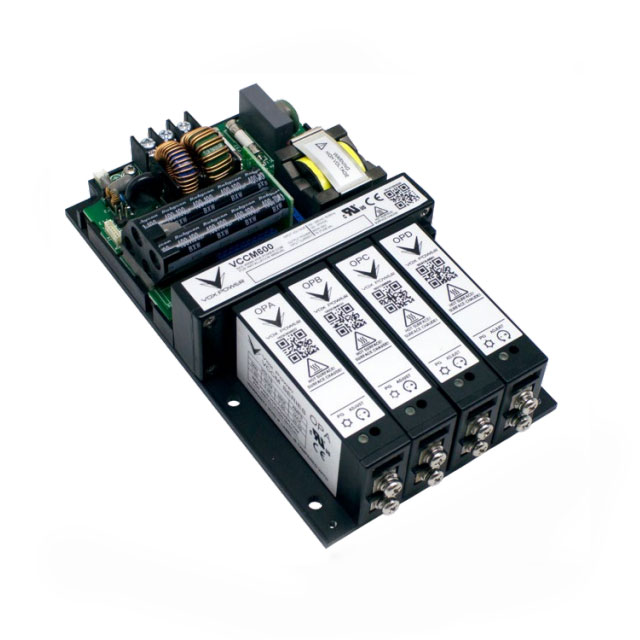

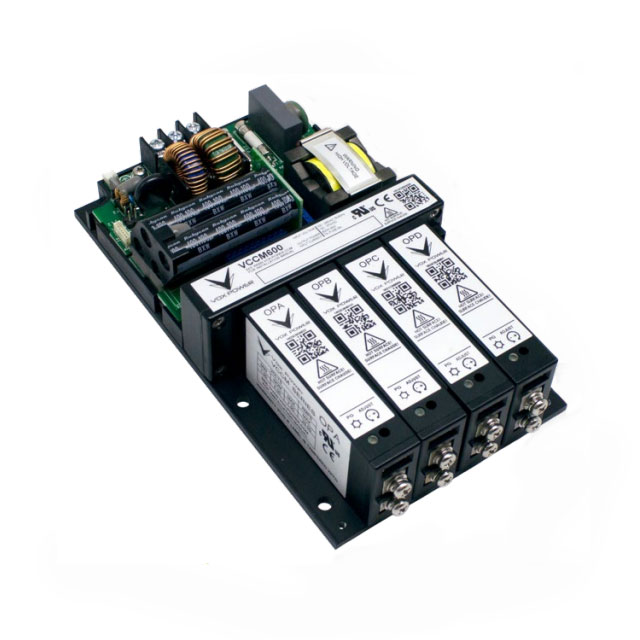

VCCM600 Series
Manufacturer: Vox Power Ltd.
Beta
⌘K
AC/DC CNVRTR 48V 2X12V 5V 575W
| Part | Minimum Load Required | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Isolation | Approval Agency | Current - Output 2 | Current - Output 3 | Efficiency | Power (Watts) | Standard Number | Number of Outputs | Applications | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Features | Current - Output 1 | Type | Voltage - Output 3 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 2 | Mounting Type | Voltage - Output 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 15 A | 15 A | 90 % | 575 W | 60950-1 62368-1 | 4 | ITE (Commercial) | 48 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 3.75 A | Open Frame | 12 V | 70 °C | -40 C | 12 V | Chassis Mount | 5 V | |
 Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 25 A | 7.5 A | 90 % | 550 W | 60601-1 | 4 | Medical | 24 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | Open Frame | 24 V | 70 °C | -40 C | 5 V | Chassis Mount | 5 V | ||
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 15 A | 15 A | 90 % | 550 W | 60950-1 62368-1 | 4 | ITE (Commercial) | 5 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 25 A | Open Frame | 12 V | 70 °C | -40 C | 12 V | Chassis Mount | 5 V | |
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 15 A | 7.5 A | 90 % | 450 W | 60950-1 62368-1 | 3 | ITE (Commercial) | 48 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 3.75 A | Open Frame | 24 V | 70 °C | -40 C | 12 V | Chassis Mount | ||
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 25 A | 3.75 A | 90 % | 400 W | 60601-1 | 3 | Medical | 5 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 25 A | Open Frame | 48 V | 70 °C | -40 C | 5 V | Chassis Mount | ||
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 7.5 A | 7.5 A | 90 % | 550 W | 60950-1 62368-1 | 4 | ITE (Commercial) | 5 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 25 A | Open Frame | 24 V | 70 °C | -40 C | 24 V | Chassis Mount | 5 V | |
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 7.5 A | 3.75 A | 90 % | 450 W | 60601-1 | 3 | Medical | 48 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 3.75 A | Open Frame | 48 V | 70 °C | -40 C | 24 V | Chassis Mount | ||
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 3.75 A | 25 A | 90 % | 425 W | 60950-1 62368-1 | 3 | ITE (Commercial) | 48 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 3.75 A | Open Frame | 5 V | 70 °C | -40 C | 48 V | Chassis Mount | ||
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 90 % | 150 W | 60601-1 | 1 | Medical | 12 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 15 A | Open Frame | 70 °C | -40 C | Chassis Mount | ||||||
Vox Power Ltd. | 4 " | 177.8 mm | 7 " | 101.6 mm | 1.57 " | 40 mm | 4000 V | CB CE CSA UL | 3.75 A | 25 A | 90 % | 400 W | 60950-1 62368-1 | 3 | ITE (Commercial) | 5 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Adjustable Output Load Sharing PFC Remote Sense Universal Input | 25 A | Open Frame | 5 V | 70 °C | -40 C | 48 V | Chassis Mount |
