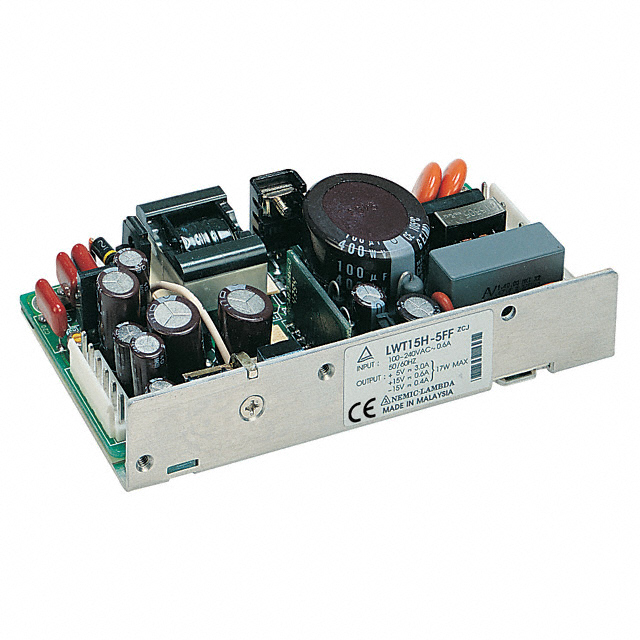

LWT15H Series
Manufacturer: TDK Corporation
Beta
⌘K
SWITCHING POWER SUPPLIES 15W 5V 3A, 12V 0.6A -5V 0.4A
| Part | Minimum Load Required | Voltage - Isolation | Applications | Current - Output 1 | Voltage - Output 2 | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 2 | Number of Outputs | Features | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 3 | Mounting Type | Efficiency | Voltage - Output 1 | Type | Power (Watts) | Current - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 3000 V | ITE (Commercial) | 3 A | 12 V | 265 VAC | 85 VAC | 600 mA | 3 | Adjustable Output DC Input Capable Universal Input | CE | 2.36 " | 0.98 in | 5.03 in | 128 mm | 59.9 mm | 25 mm | 0 °C | 60 °C | -5 V | Chassis Mount | 72 % | 5 V | Open Frame | 15 W | 400 mA | |
TDK Corporation | 3000 V | ITE (Commercial) | 3 A | 15 V | 265 VAC | 85 VAC | 600 mA | 3 | Adjustable Output DC Input Capable Universal Input | CE | 2.36 " | 0.98 in | 5.03 in | 128 mm | 59.9 mm | 25 mm | 0 °C | 60 °C | -15 V | Chassis Mount | 72 % | 5 V | Open Frame | 15 W | 400 mA |
