AM23 Series

Catalog

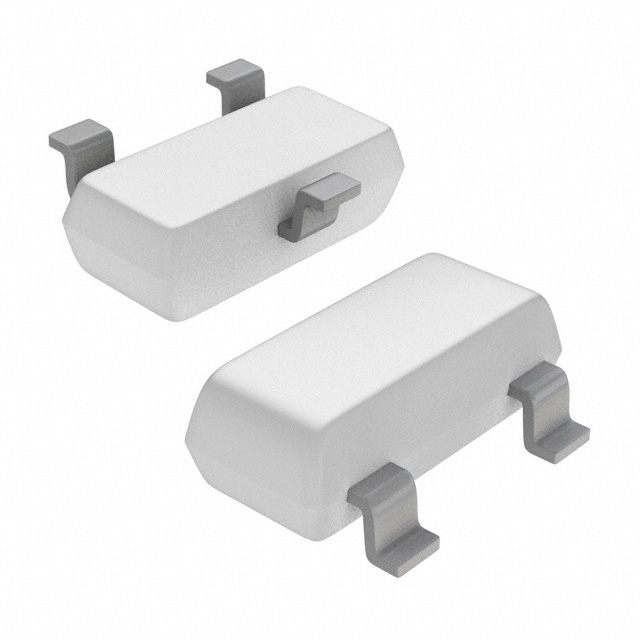

LED UNI-COLOR SB. YELLOW 590NM 3-PIN SOT-23 T/R

Part	Configuration	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength - Peak	Mounting Type	Lens Color	Wavelength - Dominant	Color	Lens Transparency	Millicandela Rating	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Lens Size [y]	Lens Size [x]	Lens Style	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]

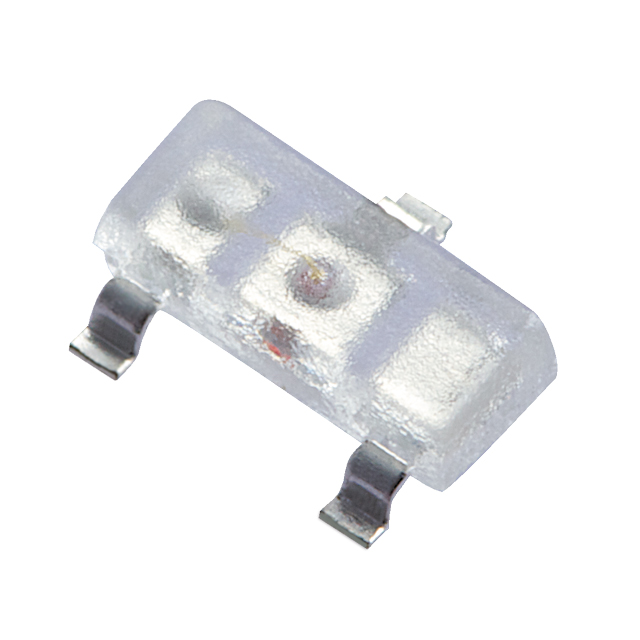

Kingbright AM23SYCK-F	Independent	SC-59 SOT-23-3 TO-236-3	20 mA	2 V	170 °	590 nm	Surface Mount	Colorless	590 nm	Yellow	Clear	120 mcd	1.2 mm	3 mm	1.4 mm	SOT-23-3	1.3 mm	2.1 mm	Rectangle with Flat Top
Kingbright AM23SYC-F	Standard	SC-59 SOT-23-3 TO-236-3	20 mA	2 V	140 °	590 nm	Surface Mount	Colorless	590 nm	Yellow	Clear	130 mcd	1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top
Kingbright AM23ESGC	Common Cathode	SC-59 SOT-23-3 TO-236-3		2 V 2.2 V	140 °	565 nm 627 nm	Surface Mount	Colorless	568 nm 617 nm	Green Red	Clear		1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top	20 mA	20 mA	10 mcd	5 mcd
Kingbright AM23ESGW	Common Cathode	3-SMD SOT-23-3 Variant		2 V 2.2 V	140 °	565 nm 627 nm	Surface Mount	White	568 nm 617 nm	Green Red	Diffused		1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top	20 mA	20 mA	9 mcd	5 mcd
Kingbright AM23ID-F	Standard	SC-59 SOT-23-3 TO-236-3	20 mA	2 V	140 °	627 nm	Surface Mount	Red	617 nm	Red	Diffused	7 mcd	1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top
Kingbright AM23SGD-F	Standard	SC-59 SOT-23-3 TO-236-3	20 mA	2.2 V	140 °	565 nm	Surface Mount	Green	568 nm	Green	Diffused	8 mcd	1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top
Kingbright AM23SGD3-F	Standard	SC-59 SOT-23-3 TO-236-3	20 mA	2.2 V	140 °	565 nm	Surface Mount	Green	568 nm	Green	Diffused	8 mcd	1.2 mm	3 mm	1.3 mm	SOT-23	1.3 mm	3 mm	Rectangle with Flat Top
Kingbright AM23YD-F	Standard	SC-59 SOT-23-3 TO-236-3	20 mA	2.1 V	140 °	590 nm	Surface Mount	Yellow	588 nm	Yellow	Diffused	8 mcd	1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top
Kingbright AM23CGCK-F	Independent	SC-59 SOT-23-3 TO-236-3	20 mA	2.1 V	170 °		Surface Mount	Colorless	570 nm	Green	Clear	50 mcd	1.2 mm	3 mm	1.4 mm	SOT-23-3	1.3 mm	2.1 mm	Rectangle with Flat Top
Kingbright AM23SGC-F	Standard	SC-59 SOT-23-3 TO-236-3	20 mA	2.2 V	140 °	565 nm	Surface Mount	Colorless	568 nm	Green	Clear	10 mcd	1.2 mm	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	Rectangle with Flat Top
