T494 AUTO Series
Manufacturer: KEMET
Beta
⌘K

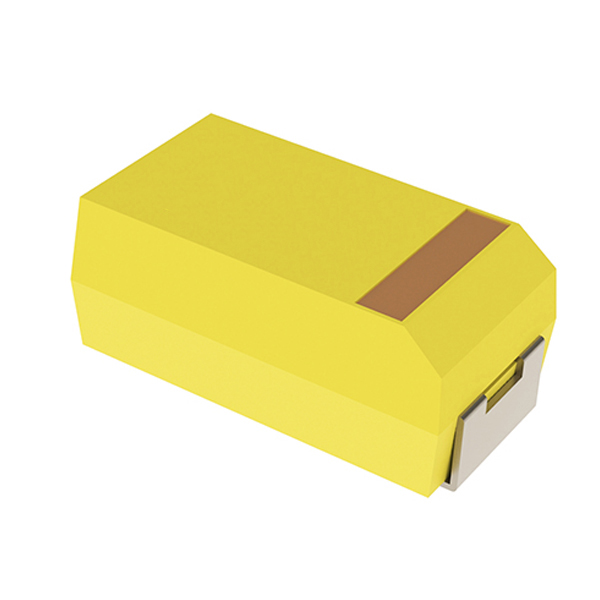

TANTALUM CAPACITORS - SOLID SMD 25V 4.7UF AEC-Q200 20% ESR=0.6OHMS
| Part | Features | Tolerance | Capacitance | Type | Mounting Type | Lifetime @ Temp. | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | ESR (Equivalent Series Resistance) | Ratings | Manufacturer Size Code | Grade | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Automotive | 20 % | 4.7 µF | Molded | Surface Mount | 2000 Hrs | 3.2 mm | 0.126 in | 0.236 in | 6 mm | 2312 (6032 Metric) | 25 VDC | -55 C | 125 °C | 600 mOhm | AEC-Q200 | |||||
 KEMET | Automotive | 20 % | 47 µF | Molded | Surface Mount | 2000 Hrs | 6 mm | 0.236 " | 0.287 " | 7.3 mm | 2924 (7361 Metric) | 35 V | -55 C | 125 °C | 300 mOhm | AEC-Q200 | E | ||||
 KEMET | Automotive | 20 % | 1 µF | Molded | Surface Mount | 2000 Hrs | 1.6 mm | 0.063 " | 0.126 " | 3.2 mm | 1206 (3216 Metric) | 16 V | -55 C | 125 °C | 6 Ohm | AEC-Q200 | A | Automotive | 1.8 mm | 0.071 in | AEC-Q200 |
