1241637 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

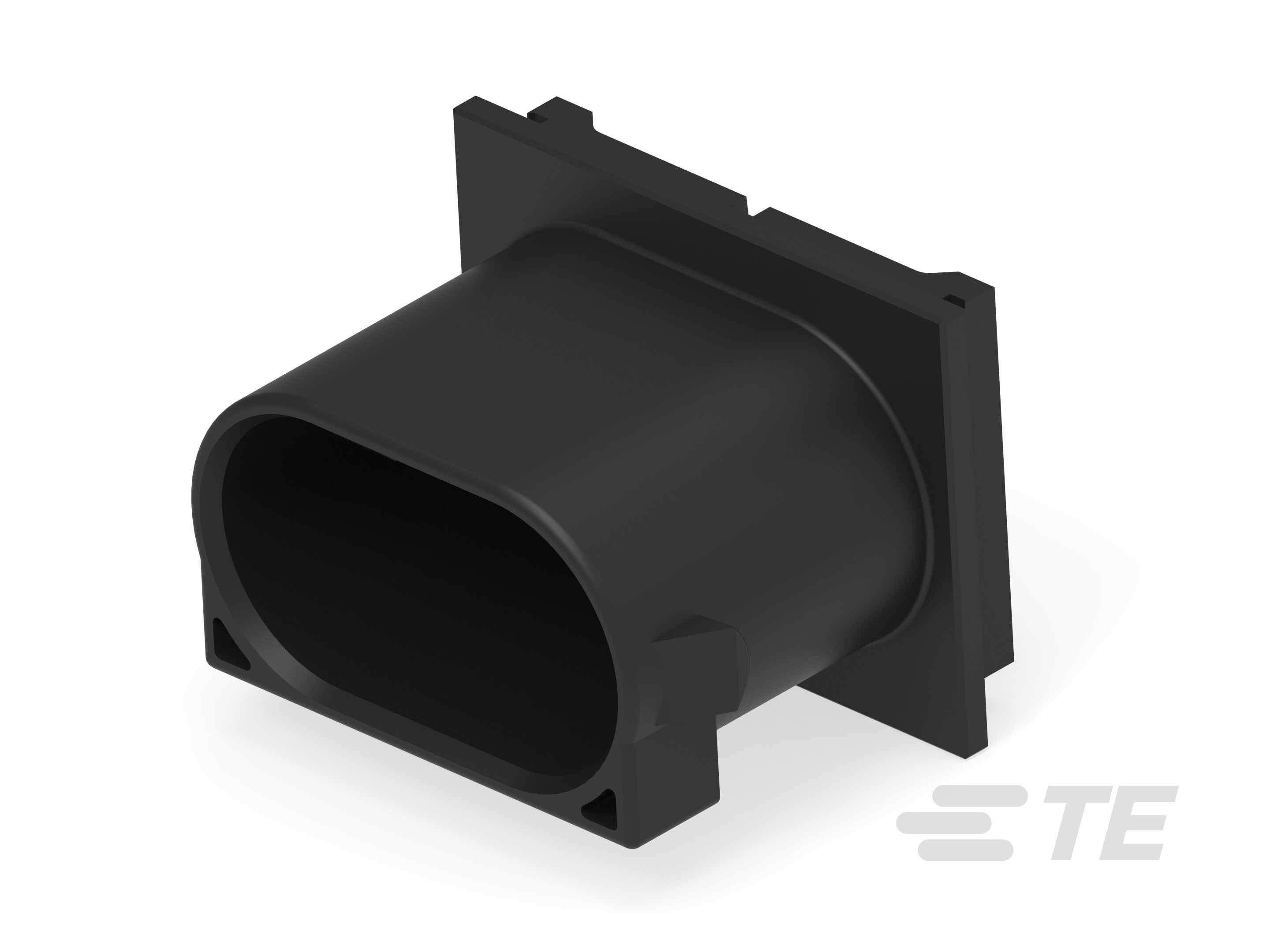

6POS MQS .63 HEADER 90DEG
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Style | Insulation Color | Shrouding | Mounting Type | Connector Type | Number of Positions Loaded | Contact Type | Contact Length - Post | Contact Length - Post | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Insulation Material | Number of Rows [custom] | Fastening Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.1 in | 2.54 mm | Solder | Board to Cable/Wire | Black | Shrouded - 4 Wall | Right Angle Through Hole | Header | All | Male Pin | 0.118 in | 3 mm | 120 °C | -40 C | Square | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Locking Ramp | UL94 V-0 | 0.079 " | 2 mm | 6 | 20.09 mm | 0.791 in |
