SPD04N50 Series
Manufacturer: INFINEON
Beta
⌘K

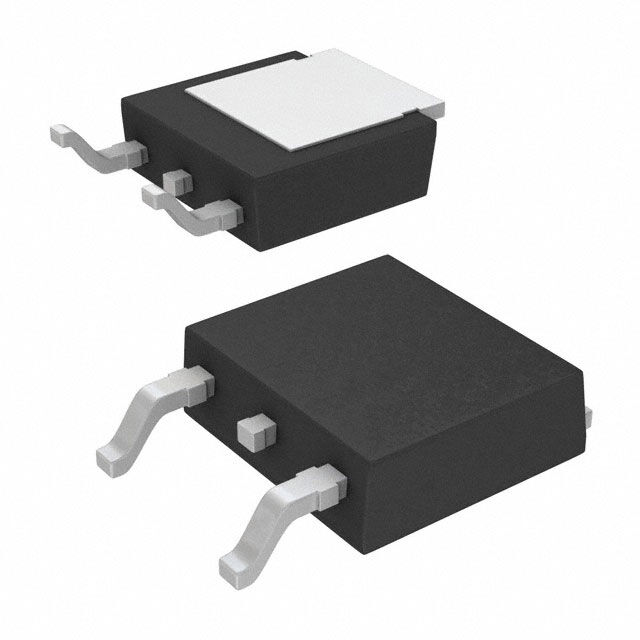

COOLMOS™ C3 N-CHANNEL SUPERJUNCTION MOSFET 500 V ; DPAK TO-252 PACKAGE; 950 MOHM;
| Part | Package / Case | Input Capacitance (Ciss) (Max) @ Vds [Max] | Gate Charge (Qg) (Max) @ Vgs [Max] | Power Dissipation (Max) | Technology | Vgs(th) (Max) @ Id | Current - Continuous Drain (Id) @ 25°C | Mounting Type | Supplier Device Package | Vgs (Max) | Rds On (Max) @ Id, Vgs | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 470 pF | 22 nC | 50 W | MOSFET (Metal Oxide) | 3.9 V | 4.5 A | Surface Mount | PG-TO252-3 | 20 V | 950 mOhm | 150 °C | -55 °C | N-Channel | 10 V | 500 V |
