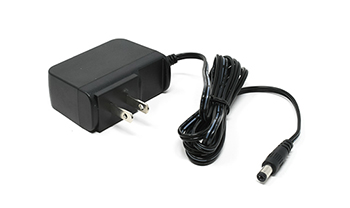

Wall Mount Power Supply 48V 20 Watt
Wall Mount Power Supply 48V 20 Watt
| Part | Standard Number | Efficiency | Input Type | Approval Agency | Input Connector | Region Utilized | Polarization | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output | Current - Output (Max) [Max] | Form | Power (Watts) | No Load Power Consumption | Output Connector | Output Connector [diameter] | Output Connector [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 60950-1 | Level VI | Fixed Blade | CB CCC CE cULus FCC LPS TUV | NEMA 1-15P | North America | Positive Center | 25.9 mm | 1.79 in | 1.02 in | 66.5 mm | 2.62 " | 45.5 mm | 264 VAC | 90 VAC | 40 °C | 0 °C | ITE (Commercial) | 15 V | 1.33 A | Wall Mount | 20 W | 100 mW | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm |
 TT Electronics/BI | 60950-1 | Level VI | Fixed Blade | CB CCC CE cULus FCC LPS TUV | NEMA 1-15P | North America | Positive Center | 25.9 mm | 1.79 in | 1.02 in | 66.5 mm | 2.62 " | 45.5 mm | 264 VAC | 90 VAC | 40 °C | 0 °C | ITE (Commercial) | 5 V | 3 A | Wall Mount | 15 W | 100 mW | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm |
TT Electronics/BI | 60950-1 | Level VI | Fixed Blade | CB CCC CE cULus FCC LPS TUV | NEMA 1-15P | North America | Positive Center | 25.9 mm | 1.79 in | 1.02 in | 66.5 mm | 2.62 " | 45.5 mm | 264 VAC | 90 VAC | 40 °C | 0 °C | ITE (Commercial) | 48 V | 420 mA | Wall Mount | 20 W | 100 mW | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm |
TT Electronics/BI | 60950-1 | Level VI | Fixed Blade | CB CCC CE cULus FCC LPS TUV | NEMA 1-15P | North America | Positive Center | 25.9 mm | 1.79 in | 1.02 in | 66.5 mm | 2.62 " | 45.5 mm | 264 VAC | 90 VAC | 40 °C | 0 °C | ITE (Commercial) | 12 V | 1.67 A | Wall Mount | 20 W | 100 mW | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm |
TT Electronics/BI | 60950-1 | Level VI | Fixed Blade | CB CCC CE cULus FCC LPS TUV | NEMA 1-15P | North America | Positive Center | 25.9 mm | 1.79 in | 1.02 in | 66.5 mm | 2.62 " | 45.5 mm | 264 VAC | 90 VAC | 40 °C | 0 °C | ITE (Commercial) | 24 V | 830 mA | Wall Mount | 20 W | 100 mW | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm |
