100AWSP3 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 5A 120V

Part	Electrical Life	Actuator Material	Illumination	Current Rating (Amps)	Voltage Rating - AC	Ingress Protection	Switch Function	Features	Termination Style	Bushing Thread	Mounting Type	Circuit	Actuator Type	Actuator Length [x]	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]
E-Switch 100AWSP3T2B4M2QE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	5 A	120 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	PC Pin	Unthreaded	Through Hole	SPDT	Standard Round	7.62 mm	28 V	85 °C	-30 ░C
E-Switch 100AWSP3T2B4M7RE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	0.4 VA	20 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	PC Pin	Unthreaded	Right Angle Through Hole Vertical	SPDT	Standard Round	7.62 mm	20 V	85 °C	-30 ░C
E-Switch 100AWSP3T2B4M6QE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	5 A	120 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	PC Pin	Unthreaded	Right Angle Through Hole	SPDT	Standard Round	7.62 mm	28 V	85 °C	-30 ░C
E-Switch 100AWSP3T2B1M2RE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	0.4 VA	20 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	PC Pin	1/4-40	Panel Mount	SPDT	Standard Round	5.08 mm	20 V	85 °C	-30 ░C	0.25 in
E-Switch 100AWSP3T1B4M1QE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	5 A	120 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	Solder Lug	Unthreaded	Panel Mount	SPDT	Standard Round	0.5 in	28 V	85 °C	-30 ░C

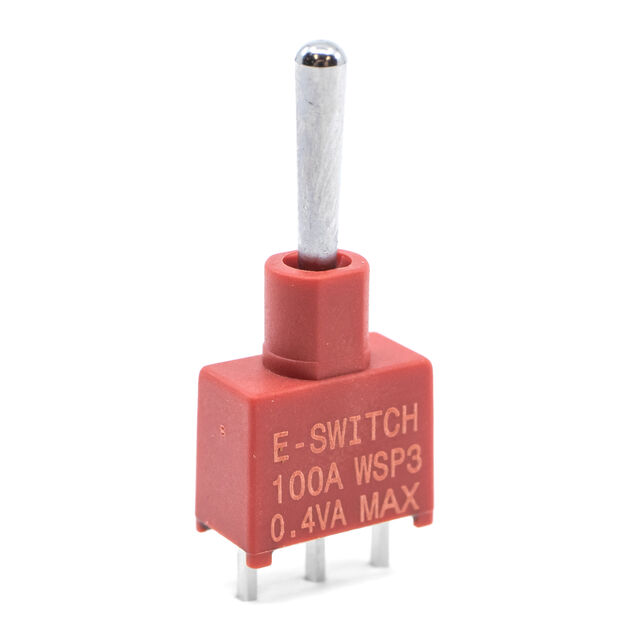

E-Switch 100AWSP3T1B4M2QE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	5 A	120 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	PC Pin	Unthreaded	Through Hole	SPDT	Standard Round	0.5 in	28 V	85 °C	-30 ░C
E-Switch 100AWSP3T1B4M2RE	30000 Cycles	Brass Chrome Plated	Non-Illuminated	0.4 VA	20 V	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals	PC Pin	Unthreaded	Through Hole	SPDT	Standard Round	0.5 in	20 V	85 °C	-30 ░C
