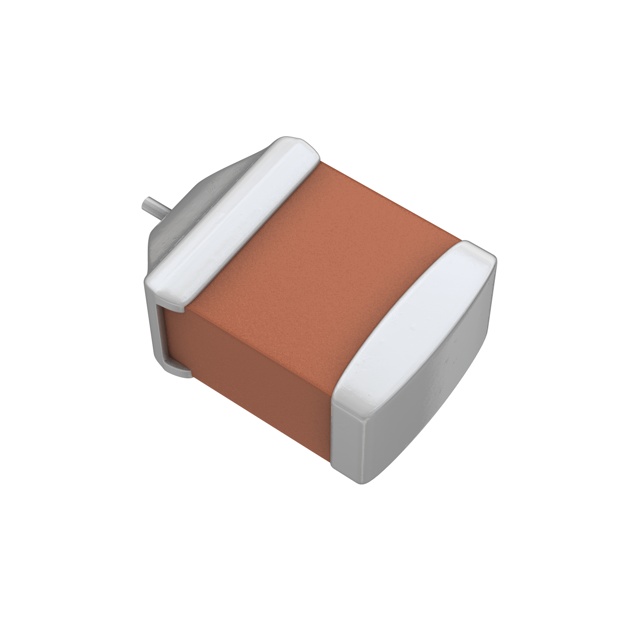

591D Series

Catalog

TANTALUM CAPACITORS - SOLID SMD SOLID TANTALUM TANTAMOUNT, LOW PROFILE, LOW ESR, CONFORMAL COATED, MAXIMUM CV

Part	Capacitance	Features	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Tolerance	Voltage - Rated	Type	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Mounting Type	Height - Seated (Max)
Vishay Dale 591D226X9016D2T15H	22 µF	General Purpose	2917 (7343 Metric)	125 °C	-55 °C	0.169 in	0.295 in	10 %	16 V	Conformal Coated	180 mOhm	D	Surface Mount	0.059 in
Vishay Dale 591D337X96R3D2T20H	330 µF	General Purpose	2917 (7343 Metric)	125 °C	-55 °C	0.169 in	0.295 in	10 %	6.3 V	Conformal Coated	60 mOhm	D	Surface Mount	0.079 in
Vishay Dale 591D337X06R3D2T20H	330 µF	General Purpose	2917 (7343 Metric)	125 °C	-55 °C	0.169 in	0.295 in	20 %	6.3 V	Conformal Coated	60 mOhm	D	Surface Mount	0.079 in
Vishay Dale 591D108X96R3R2T20H	1000 µF	General Purpose	2824 (7260 Metric)	125 °C	-55 °C	0.236 in	0.283 in	10 %	6.3 V	Conformal Coated	75 mOhm	R	Surface Mount	0.079 in
Vishay Dale 591D477X06R3C2T20H	470 µF	General Purpose	2812 (7132 Metric)	125 °C	-55 °C	0.126 in	0.28 in	20 %	6.3 V	Conformal Coated	60 mOhm	C	Surface Mount	0.079 in
Vishay Dale 591D106X9020B2T15H	10 µF	General Purpose	1611 (4028 Metric)	125 °C	-55 °C	0.11 in	0.157 in	10 %	20 V	Conformal Coated	1.5 Ohm	B	Surface Mount	0.059 in
Vishay Dale 591D156X06R3A2T15H	15 µF	General Purpose	1507 (3718 Metric)	125 °C	-55 °C	0.071 in	0.146 in	20 %	6.3 V	Conformal Coated	1.3 Ohm	A	Surface Mount	0.059 in
Vishay Dale 591D156X9025R8T15H	15 µF	General Purpose	2824 (7260 Metric)	125 °C	-55 °C	0.236 in	0.283 in	10 %	25 VAC	Conformal Coated	200 mOhm	R	Surface Mount	0.059 in
Vishay Dale 591D476X9004B2T15H	47 µF	General Purpose	1611 (4028 Metric)	125 °C	-55 °C	0.11 in	0.157 in	10 %	4 V	Conformal Coated	800 mOhm	B	Surface Mount	0.059 in
Vishay Dale 591D157X9004C2T15H	150 µF	General Purpose	2812 (7132 Metric)	125 °C	-55 °C	0.126 in	0.28 in	10 %	4 V	Conformal Coated	150 mOhm	C	Surface Mount	0.059 in
