3020-50 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER SMD 50POS 2.54MM

Part	Contact Finish Thickness - Post	Fastening Type	Number of Rows [custom]	Features	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Finish - Post	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Style	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Current Rating (Amps)	Number of Positions	Mounting Type	Contact Finish - Mating	Contact Type	Insulation Height	Insulation Height	Material Flammability Rating	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Voltage Rating	Insulation Height [z]	Insulation Height [z]
CNC Tech 3020-50-0300-00	Flash	Push-Pull	2	Keying Slot	Solder	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Gold	Brass	Header	-40 C	105 ░C	All	Board to Cable/Wire	Flash	0.1 "	2.54 mm	Black	3 A	50	Surface Mount	Gold	Male Pin	0.354 in	9 mm	UL94 V-0	Shrouded - 4 Wall	Square

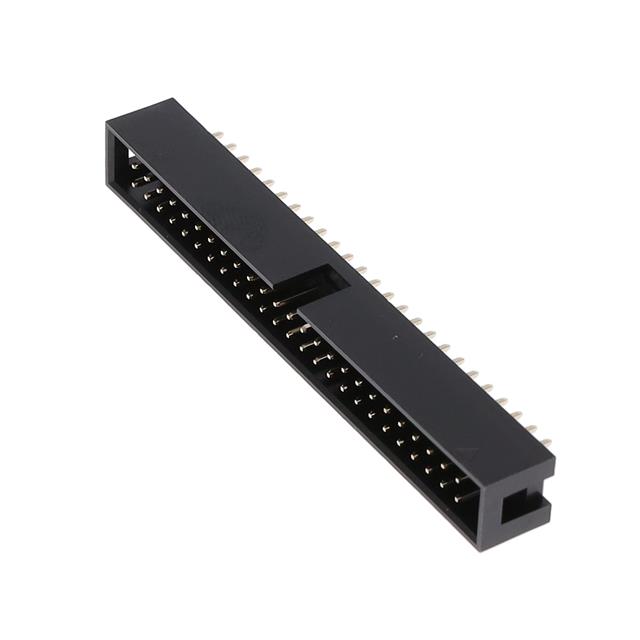

CNC Tech 3020-50-0100-00	Flash	Push-Pull	2	Keying Slot	Solder	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Gold	Brass	Header	-40 C	105 ░C	All	Board to Cable/Wire	Flash	0.1 "	2.54 mm	Black	3 A	50	Through Hole	Gold	Male Pin	0.354 in	9 mm	UL94 V-0	Shrouded - 4 Wall	Square	0.118 in	3 mm	250 VAC
CNC Tech 3020-50-0300-00-TR	Flash	Push-Pull	2	Keying Slot Pick and Place	Solder	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Gold	Copper Alloy	Header	-40 C	105 ░C	All	Board to Cable/Wire		0.1 "	2.54 mm	Black	3 A	50	Surface Mount	Gold	Male Pin	0.358 "	9.1 mm	UL94 V-0	Shrouded - 4 Wall	Square			250 VAC
CNC Tech 3020-50-0200-00	Flash	Push-Pull	2	Keying Slot	Solder	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Gold	Brass	Header	-40 C	105 ░C	All	Board to Cable/Wire	Flash	0.1 "	2.54 mm	Black	3 A	50	Right Angle Through Hole	Gold	Male Pin			UL94 V-0	Shrouded - 4 Wall	Square	0.118 in	3 mm	250 VAC	8.8 mm	0.346 in
