953264 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

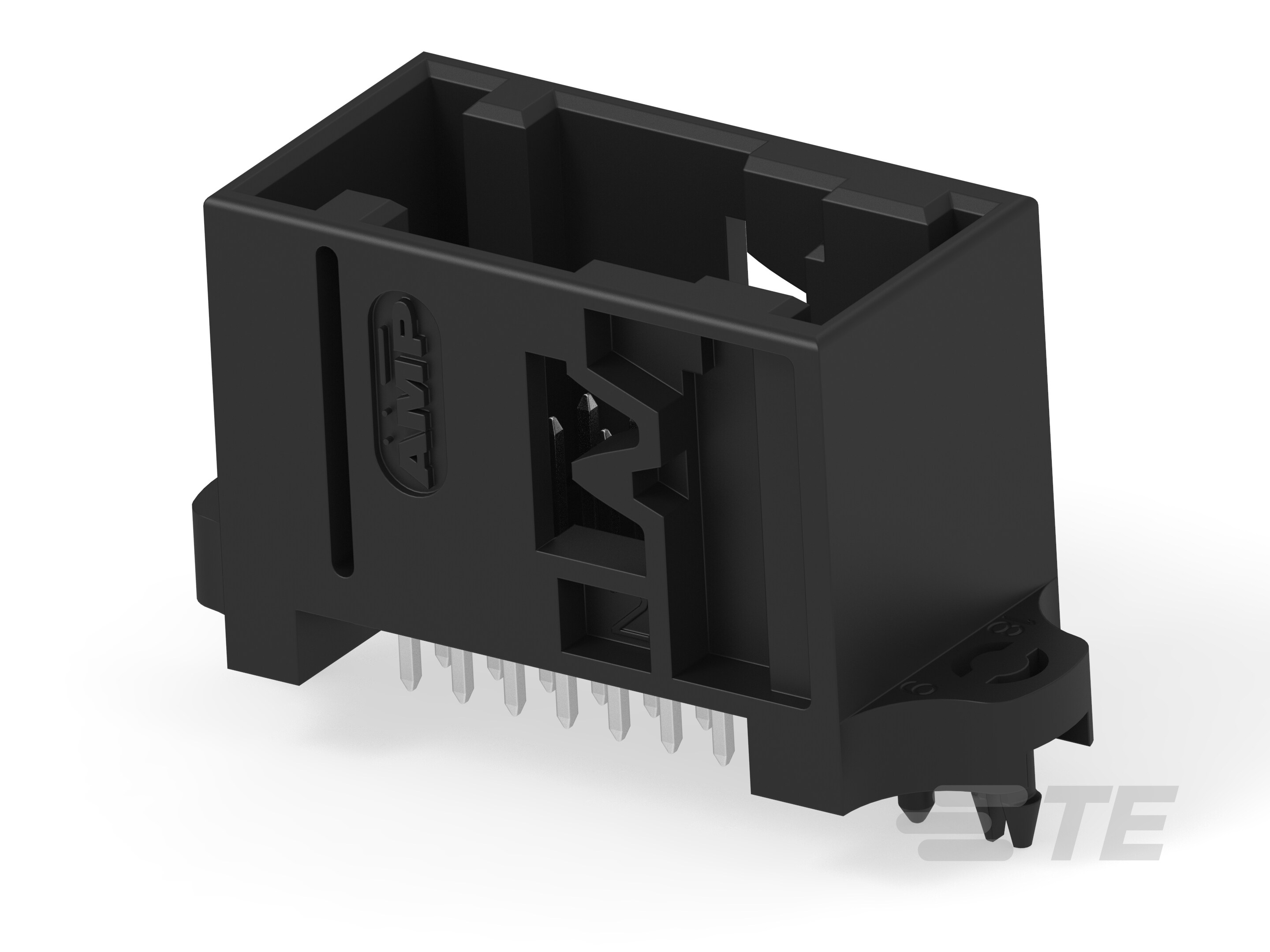

18POS MQS .63 HEADER 180DEG THR
| Part | Applications | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Contact Type | Termination | Contact Finish - Post | Style | Shrouding | Connector Type | Contact Shape | Contact Material | Insulation Height | Insulation Height [z] | Number of Positions | Features | Number of Rows [custom] | Insulation Color | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive | 0.1 in | 2.54 mm | 0.114 in | 2.9 mm | Polyethylene Terephthalate (PET) Glass Filled | Male Pin | Solder | Tin | Board to Cable/Wire | Shrouded - 4 Wall | Header | Square | Copper Alloy | 21.21 mm | 0.835 in | 18 | Board Guide Board Lock | 2 | Black | Friction Lock | 85 °C | -40 C | Through Hole | 0.1 " | 2.54 mm | All |
