10226 Series

Catalog

JE150317830 10226-1A10PL=26/MDR/RC/RA/SMTRECP/V2DESIGN/8MIN

Part	Contact Finish	Termination	Flange Feature	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Connector Type	Features	Number of Rows [custom]	Number of Positions

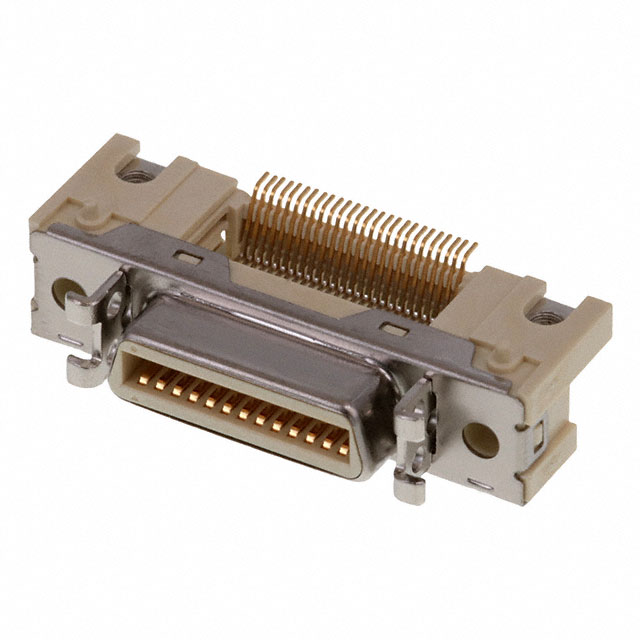

3M Electronic Specialty 10226-1A10PL	Gold	Solder	Housing/Shell (M2.6)	Right Angle Surface Mount	20 µin	0.51 µm	Outer Shroud Contacts	Receptacle	Board Guide Shielded	2	26
3M Electronic Specialty 10226-R21CS	Gold	Press-Fit	Housing/Shell (M2.6)	Panel Mount Through Hole	30 Áin	0.76 Ám	Outer Shroud Contacts	Receptacle	Shielded	2	26
3M Electronic Specialty 10226-6212VC	Gold	Solder	Housing/Shell (M2.6)	Panel Mount Through Hole	30 Áin	0.76 Ám	Outer Shroud Contacts	Receptacle	Shielded	2	26

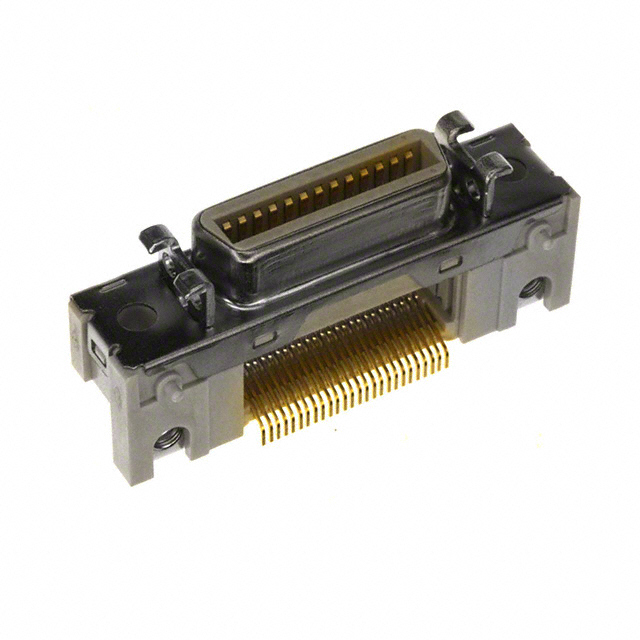

3M Electronic Specialty 10226-1A10PE	Gold	Solder	Housing/Shell (M2.6)	Right Angle Surface Mount	20 µin	0.51 µm	Outer Shroud Contacts	Receptacle	Board Guide Shielded	2	26
3M Electronic Specialty 10226-55G3PL	Gold	Solder	Housing/Shell (M2.6)	Panel Mount Right Angle Through Hole	8 µin	0.203 çm	Outer Shroud Contacts	Receptacle	Board Lock Shielded	2	26
3M Electronic Specialty 10226-6202PC	Gold	Solder	Housing/Shell (M2.6)	Panel Mount Through Hole	30 Áin	0.76 Ám	Outer Shroud Contacts	Receptacle	Shielded	2	26
3M Electronic Specialty 10226-1A10PC	Gold	Solder	Housing/Shell (M2.6)	Right Angle Surface Mount	20 µin	0.51 µm	Outer Shroud Contacts	Receptacle	Board Guide Shielded	2	26
3M Electronic Specialty 10226-1210PE	Gold	Solder	Housing/Shell (M2.6)	Right Angle Surface Mount	20 µin	0.51 µm	Outer Shroud Contacts	Receptacle	Board Guide Shielded	2	26
3M Electronic Specialty 10226-55F3PC	Gold	Solder	Latchblocks	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	Outer Shroud Contacts	Receptacle	Board Lock Shielded	2	26

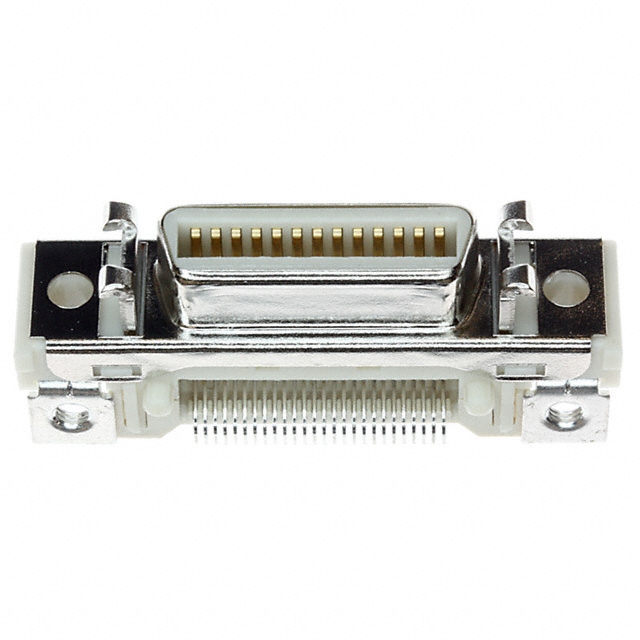

3M Electronic Specialty 10226-1210VE	Gold	Solder	Housing/Shell (M2.6)	Right Angle Surface Mount	30 Áin	0.76 Ám	Outer Shroud Contacts	Receptacle	Board Guide Shielded	2	26
