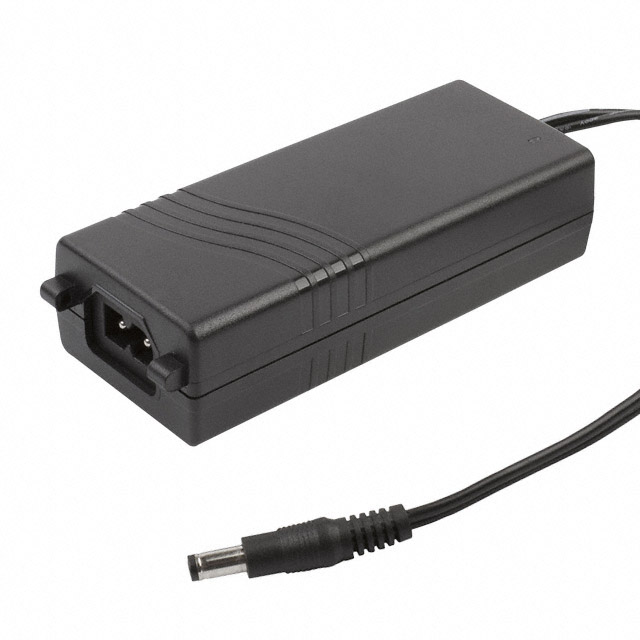

AFM30-60 Series
Manufacturer: XP Power
Beta
⌘K
DESKTOP AC ADAPTERS EXTERNAL CLASS II PSU, 30W, IND+MED
| Part | Weight | Weight | Operating Temperature [Min] | Operating Temperature [Max] | Cord Length | Cord Length | Polarization | Output Connector [diameter] | Output Connector | Output Connector [x] | Region Utilized | Form | Standard Number | Current - Output (Max) [Max] | Power (Watts) | Voltage - Output | Input Connector | Input Type | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 0.565 lb | 256.28 g | 0 °C | 60 °C | 0.95 m | 37.4 in | Positive Center | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | International | Desktop (Class II) | 60601-1; 62368-1 | 1.25 A | 30 Watts | 24 V | IEC 320-C8 Polarized | Cord (Sold Separately) | Level V | 30.8 mm | 50 mm | 4.76 " | 1.97 in | 121 mm | 1.21 " | 80 VAC | 264 VAC | CB TUV UL | ITE (Commercial) Medical |
