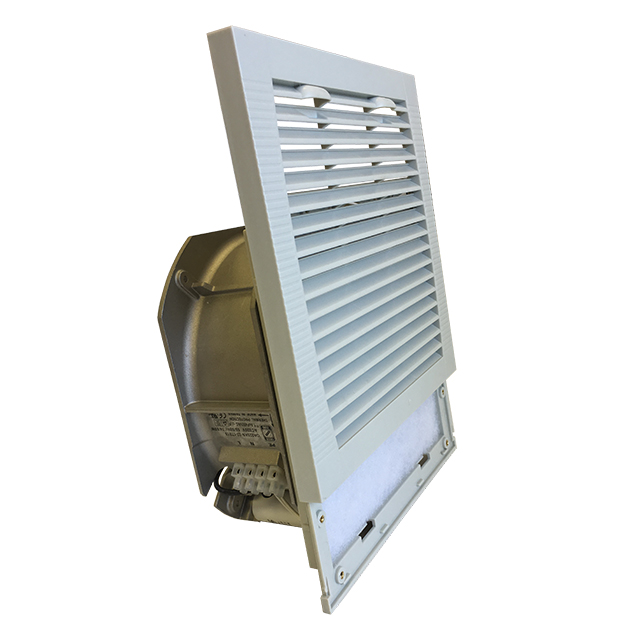

OA225LF Series

Catalog

FAN AXIAL 317X125.5MM 230VAC

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	RPM	Termination	Noise	Air Flow	Air Flow	Bearing Type	Width [y]	Static Pressure	Static Pressure	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Voltage - Rated	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Width [x]	Size / Dimension [z]	Current Rating (Amps)
ORION FANS OA225LFGS221T	Metal	40000 Hrs	Aluminum	2800 RPM	Terminal Block	59 dB(A)	16.8 mł/min	600 CFM	Ball	125.5 mm	137 Pa	0.55 in H2O	Capacitor Kit Thermal Overload Protector (TOP)	cURus TUV	317 mm	317 mm	70 °C	104 °F	40 °C	70 °C	Tubeaxial	230 VAC	80 W
ORION FANS OA225LFGS111T	Metal	40000 Hrs	Aluminum	2800 RPM	Terminal Block	59 dB(A)	16.8 mł/min	600 CFM	Ball	125.5 mm	137 Pa	0.55 in H2O	Capacitor Kit Thermal Overload Protector (TOP)	cURus TUV	317 mm	317 mm	70 °C	104 °F	40 °C	70 °C	Tubeaxial	115 VAC	72 W	100 VAC	125 VAC
ORION FANS OA225LFGH221T	Metal	40000 Hrs	Aluminum	2800 RPM	Terminal Block	59 dB(A)	16.8 mł/min	600 CFM	Ball		137 Pa	0.55 in H2O	Capacitor Kit Thermal Overload Protector (TOP)	cURus TUV	322.7 mm		70 °C	104 °F	40 °C	70 °C	Tubeaxial	230 VAC	80 W			133.4 mm	322.7 mm
ORION FANS OA225LFG111T	Metal	40000 Hrs	Aluminum	2800 RPM	Terminal Block	59 dB(A)	16.8 mł/min	600 CFM	Ball		137 Pa	0.55 in H2O	Capacitor Kit Thermal Overload Protector (TOP)	cURus TUV	320 mm		80 °C	-40 C			Tubeaxial	115 VAC	72 W	100 VAC	125 VAC	141.5 mm	320 mm	0.7 A
ORION FANS OA225LFG221T	Metal	40000 Hrs	Aluminum	2800 RPM	Terminal Block	61 dB(A)	16.8 mł/min	600 CFM	Ball		166.9 Pa	0.67 in H2O	Capacitor Kit Thermal Overload Protector (TOP)	cURus TUV	320 mm		80 °C	-40 C			Tubeaxial	230 VAC	80 W			141.5 mm	320 mm	0.35 A
