6439C8 Series
Manufacturer: Belden Inc.
Beta
⌘K

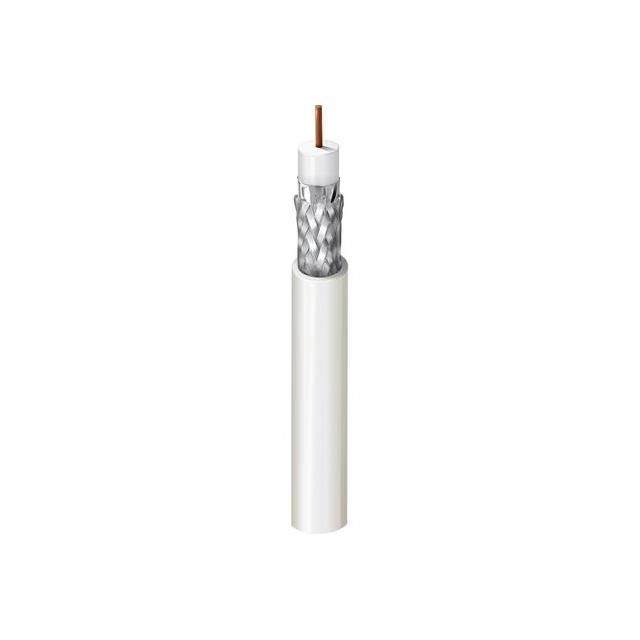

COAX RG-59/U PLENUM COAX
| Part | Dielectric Material | Shield Coverage | Conductor Material | Shield Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Length [x] | Length [x] | Impedance | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Cable Group | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Fluorinated Ethylene Propylene (FFEP) | 80 % 100 % | Copper Bare | Aluminum | 83 | 3.43 mm | 0.135 in | 304.8 m | 1000 ft | 75 Ohms | Natural | 20 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) | RG-59 | Coaxial - Plenum | Braid Foil | 5.06 mm | 0.199 in | Solid |
