HMC1049 Series

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz

Part	Frequency [Max]	Frequency [Min]	Gain	Package / Case	Mounting Type	Noise Figure	Test Frequency	Voltage - Supply	Current - Supply	RF Type	Supplier Device Package	P1dB	Test Frequency [Max]	Test Frequency [Min]	Supplied Contents	For Use With/Related Products	Contents	Type	Utilized IC / Part
Analog Devices Inc./Maxim Integrated HMC1049	20 GHz	300 MHz	16.5 dBi	Die	Surface Mount	2.7 dB	1 GHz	7 V	70 mA	VSAT	Die	15 dBm
Analog Devices Inc./Maxim Integrated HMC1049-SX	20 GHz	300 MHz	16 dBi	Die	Surface Mount	1.7 dB		7 V	70 mA	General Purpose	Die	13 dBm
Analog Devices Inc./Maxim Integrated HMC1049SCPZ-EP-R7	20 GHz	300 MHz	16 dBi	32-WFQFN Exposed Pad CSP	Surface Mount	3.5 dB			70 mA	Radar SATCOM VSAT	32-LFCSP-WQ (5x5)	16 dBm	1 GHz	300 MHz
Analog Devices Inc./Maxim Integrated HMC1049LP5ETR	20 GHz	300 MHz	16.5 dBi	32-VFQFN Exposed Pad	Surface Mount	2.7 dB	300 MHz	7 V	70 mA	VSAT	32-QFN (5x5)	15 dBm

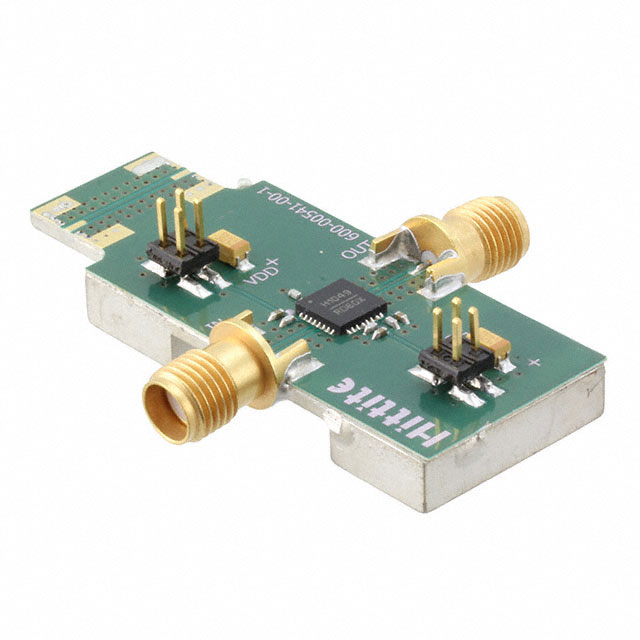

Analog Devices Inc./Maxim Integrated EVAL01-HMC1049LP5	20 GHz	300 MHz													Board(s)	HMC1049LP5E	Board(s)	Amplifier	HMC1049LP5E

Catalog

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz

Description

The HMC1049 is a GaAs MMIC low noise amplifier (LNA) that operates between 0.3 GHz and 20 GHz. This LNA provides 16 dB of small signal gain, a 1.7 dB noise figure, and an Output IP3 of 27 dBm, requiring only 70 mA from a 7 V supply. The P1dB output power of 16 dBm enables the LNA to function as a local oscillator (LO) driver for balanced, I/Q or image rejection mixers. VDDcan be applied to Pad 2 with VDD= 7 V or to Pad 4 with VDD= 4 V. Pad 4 requires a bias tee. The HMC1049 is also internally matched to 50 Ω for ease of integration into multichip modules (MCMs). All data is taken with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mil) length.ApplicationsPoint-to-point radiosPoint-to-multipoint radiosMilitary and spaceTest instrumentation
