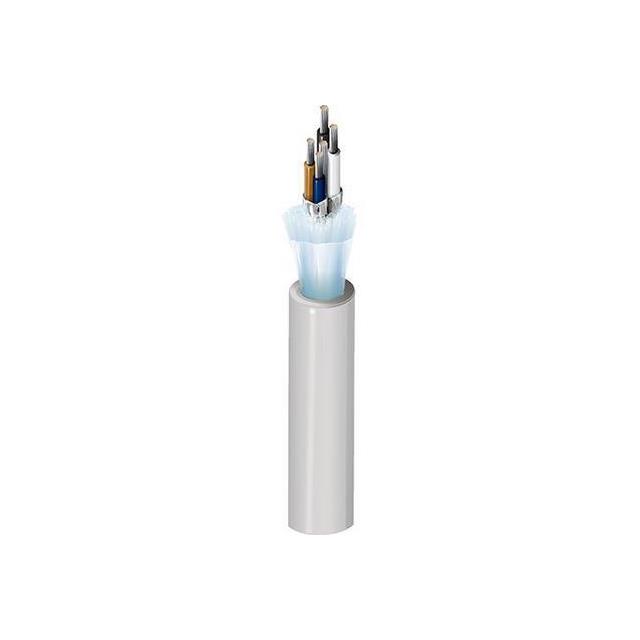

3086A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 16/20AWG
| Part | Shield Coverage | Shield Material | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Cable Type | Conductor Material | Features | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Insulation | Length | Length | Shield Type | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | UL Style 2464 | 80 °C | -30 ░C | 4 | Multi-Pair | Copper Tinned | Drain Wire | Poly-Vinyl Chloride (PVC) | 0.398 in | 10.11 mm | 1.016 mm | 0.04 in | Gray | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Foil | 300 VDC | 19 | 28 32 | 16 AWG 20 AWG |
