CD431690 Series

Catalog

THYRISTOR MODULE, SERIES CONNECTED, 95 A, 1.6 KV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Current - Hold (Ih) (Max) [Max]	Structure	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - On State (It (RMS)) (Max)	Number of SCRs, Diodes	Current - On State (It (AV)) (Max) [Max]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]

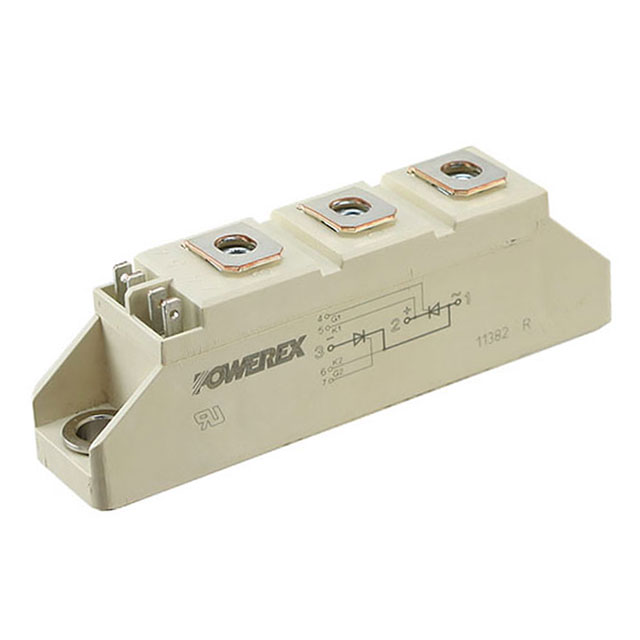

Powerex Inc. CD431690B	2000 A 2100 A	POW-R-BLOK™ Module	250 mA	Series Connection - All SCRs	-40 C	125 °C	Chassis Mount	150 A	2 SCRs	95 A	1.6 kV	150 mA

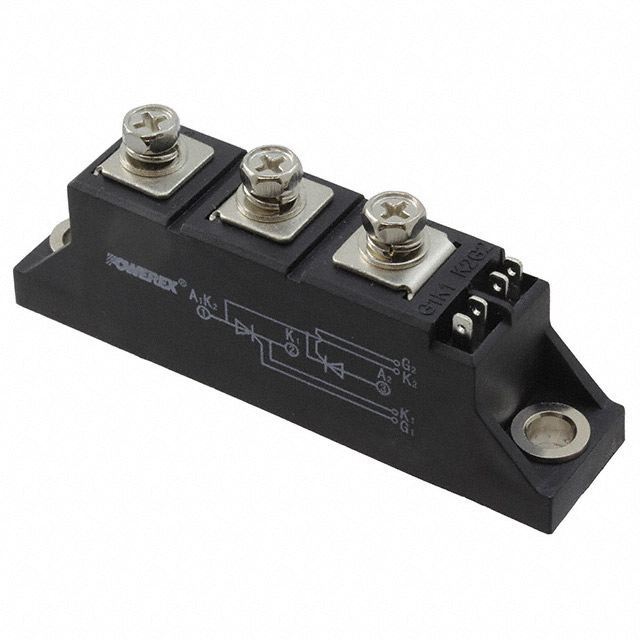

Powerex Inc. CD431690C	2000 A	Module	100 mA	Series Connection - All SCRs	-40 C	125 °C			2 SCRs	90 A	1.6 kV	100 mA	141 A	2.5 V
