98432 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

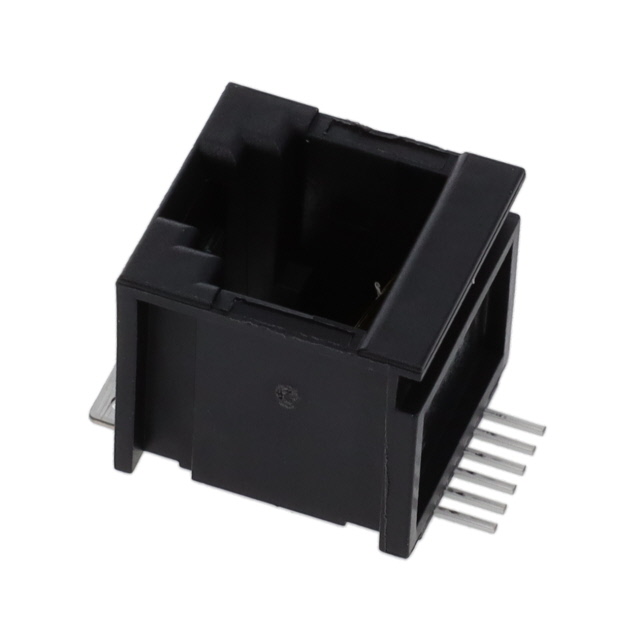

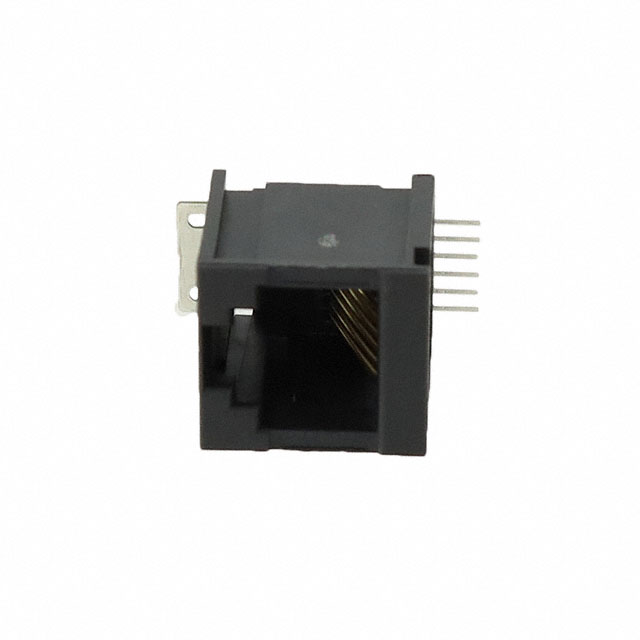

CONN MOD JACK 6P6C VERT UNSHLD
| Part | Number of Rows | Orientation | Ratings | Number of Ports | Tab Direction | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Material | Mounting Type | Contact Finish | Number of Positions/Contacts | Features | Contact Finish Thickness | Contact Finish Thickness | Shielding | Housing Material | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 1 | Vertical | Cat3 | 1 | User Selectable | Solder | 70 °C | -25 °C | Jack | Phosphor Bronze | Surface Mount | Gold GXT™ | 6p6c (RJ11 RJ12 RJ14 RJ25) | Solder Retention | 0.76 Ám | 30 Áin | Unshielded | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Does Not Contain LED |
 Amphenol ICC (FCI) | 1 | Vertical | Cat3 | 1 | User Selectable | Solder | 70 °C | -25 °C | Jack | Phosphor Bronze | Surface Mount | Gold | 6p6c (RJ11 RJ12 RJ14 RJ25) | Solder Retention | 0.76 Ám | 30 Áin | Unshielded | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Does Not Contain LED |
Amphenol ICC (FCI) | 1 | Vertical | Cat3 | 1 | User Selectable | Solder | 70 °C | -25 °C | Jack | Phosphor Bronze | Surface Mount | Gold | 6p6c (RJ11 RJ12 RJ14 RJ25) | Solder Retention | 0.76 Ám | 30 Áin | Unshielded | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Does Not Contain LED |
