SJ6012 Series

SCR 600V 12A TO252

Catalog

SCR 600V 12A TO252

Part	Voltage - Gate Trigger (Vgt) (Max)	Package / Case	SCR Type	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Current - Off State (Max) [Max] [custom]	Voltage - On State (Vtm) (Max)	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Hold (Ih) (Max)	Current - On State (It (AV)) (Max)
LITTELFUSE SJ6012LTP	1.5 V	TO-220-3 Full Pack Isolated Tab	Standard Recovery	20 mA	ITO-220AB	10 µA	1.6 V	12 A	600 V	7.6 A	60 mA	Through Hole	100 A 120 A	-40 °C	150 °C
LITTELFUSE SJ6012V1TP	1.5 V	IPAK TO-251-3 Short Leads TO-251AA	Standard Recovery	20 mA	TO-251AA	10 µA	1.6 V	12 A	600 V	7.6 A		Through Hole	100 A 120 A	-40 °C	150 °C	40 mA
LITTELFUSE SJ6012NTP	1.5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Standard Recovery	20 mA	TO-263 (D2PAK)	10 µA	1.6 V	12 A	600 V	7.6 A	60 mA	Surface Mount	100 A 120 A	-40 °C	150 °C
LITTELFUSE SJ6012DRP	1.5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	Standard Recovery	20 mA	TO-252 (DPAK)	10 µA	1.6 V	12 A	600 V	7.6 A		Surface Mount	100 A 120 A	-40 °C	150 °C	40 mA
LITTELFUSE SJ6012N2TP	1.5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Standard Recovery	10 mA	TO-263 (D2PAK)	10 µA	1.6 V	25 A	600 V		35 mA	Surface Mount	300 A 350 A	-40 °C	150 °C		16 A
LITTELFUSE SJ6012D1TP	1.5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	Standard Recovery	6 mA	TO-252AA	10 µA	1.6 V	12 A	600 V	7.6 A	15 mA	Surface Mount	100 A 120 A	-40 °C	150 °C

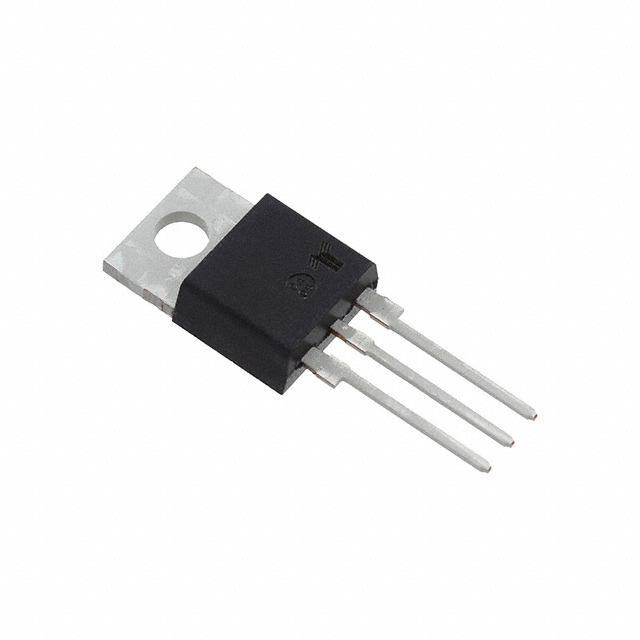

LITTELFUSE SJ6012RTP	1.5 V	TO-220-3	Standard Recovery	20 mA	TO-220AB	10 µA	1.6 V	12 A	600 V	7.6 A	60 mA	Through Hole	100 A 120 A	-40 °C	150 °C
LITTELFUSE SJ6012NRP	1.5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Standard Recovery	20 mA	TO-263 (D2PAK)	10 µA	1.6 V	12 A	600 V	7.6 A	60 mA	Surface Mount	100 A 120 A	-40 °C	150 °C
LITTELFUSE SJ6012N2RP	1.5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Standard Recovery	10 mA	TO-263 (D2PAK)	10 µA	1.6 V	25 A	600 V		35 mA	Surface Mount	300 A 350 A	-40 °C	150 °C		16 A
LITTELFUSE SJ6012N1TP	1.5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Standard Recovery	6 mA	TO-263 (D2PAK)	10 µA	1.6 V	12 A	600 V	7.6 A	15 mA	Surface Mount	100 A 120 A	-40 °C	150 °C

Catalog

SCR 600V 12A TO252

Description

This SJxx12xx high junction temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/ rectifiers, inrush current control and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 6mA, 10mA or 20mA maximum at approximately 1.5V.
