A10YAR-P Series
Manufacturer: ODU
Beta
⌘K

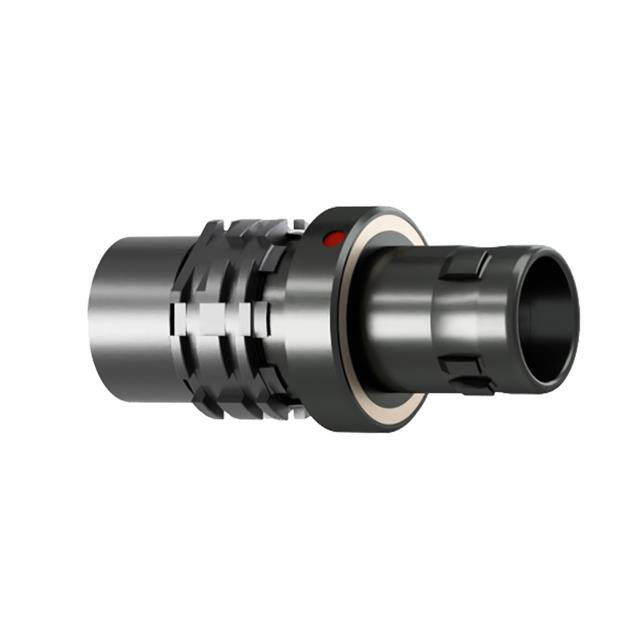

CONN PLUG MALE 7P GOLD SLDR CUP
| Part | Insert Material | Contact Material | Applications | Backshell Material, Plating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Features | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Contact Finish - Mating | Shielding | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Size - Insert [custom] | Cable Opening | Cable Opening | Orientation | Shell Finish | Mounting Type | Fastening Type | Ingress Protection | Color | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Copper Alloy | Industrial Medical Military | Aluminum Electroless Nickel | 49.3 µin | 1.25 µm | 7 | Backshell | UL94 V-0 | 300 VDC | 5 A | Gold | Shielded | Metal | -51 °C | 125 °C | Plug Male Pins | 0 | 0.217 in | 5.5 mm | A | Ruthenium over Electroless Nickel | Free Hanging (In-Line) | Push-Pull | IP68 IP69K | Black Silver | Aluminum | |
Polyetheretherketone (PEEK) | Copper Alloy | Industrial Medical Military | 49.3 µin | 1.25 µm | 4 | Backshell | UL94 V-0 | 300 VDC | 7 A | Gold | Shielded | Metal | -51 °C | 125 °C | Plug Male Pins | 0 | 0.217 in | 5.5 mm | A | Ruthenium over Electroless Nickel | Free Hanging (In-Line) | Push-Pull | IP68 IP69K | Black Silver | Aluminum | ||
Polyetheretherketone (PEEK) | Copper Alloy | Industrial Medical Military | Aluminum Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | Backshell | UL94 V-0 | 400 V | 10 A | Gold | Shielded | Metal | -51 °C | 125 °C | Plug Male Pins | 0 | 0.217 in | 5.5 mm | A | Ruthenium over Electroless Nickel | Free Hanging (In-Line) | Push-Pull | IP68 IP69K | Silver | Aluminum | ||
Polyetheretherketone (PEEK) | Copper Alloy | Industrial Medical Military | Aluminum Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | 2 | Backshell | UL94 V-0 | 400 V | 10 A | Gold | Shielded | Metal | -51 °C | 125 °C | Plug Male Pins | 0 | 0.217 in | 5.5 mm | A | Ruthenium over Electroless Nickel | Free Hanging (In-Line) | Push-Pull | IP68 IP69K | Silver | Aluminum | |
Polyetheretherketone (PEEK) | Copper Alloy | Industrial Medical Military | Aluminum Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | 10 | Backshell | UL94 V-0 | 200 V | 5 A | Gold | Shielded | Metal | -51 °C | 125 °C | Plug Male Pins | 0 | 0.217 in | 5.5 mm | A | Ruthenium over Electroless Nickel | Free Hanging (In-Line) | Push-Pull | IP68 IP69K | Silver | Aluminum | |
Polyetheretherketone (PEEK) | Copper Alloy | Industrial Medical Military | Aluminum Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | 4 | Backshell | UL94 V-0 | 300 VDC | 7 A | Gold | Shielded | Metal | -51 °C | 125 °C | Plug Male Pins | 0 | 0.217 in | 5.5 mm | A | Ruthenium over Electroless Nickel | Free Hanging (In-Line) | Push-Pull | IP68 IP69K | Silver | Aluminum |
