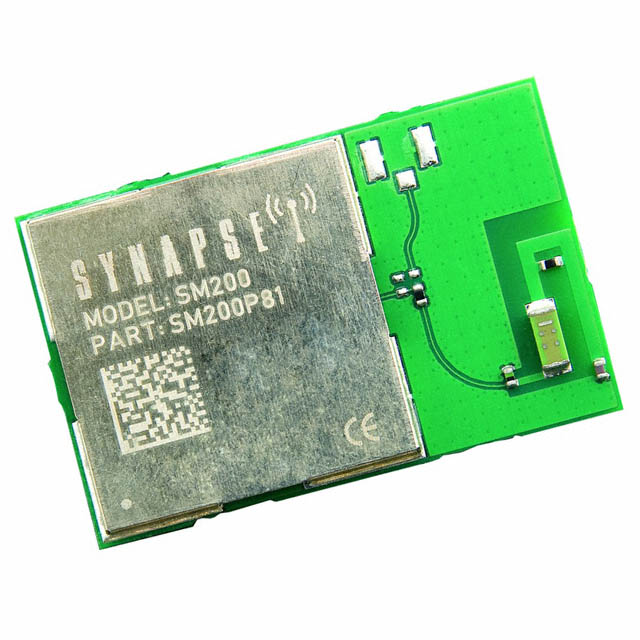

SM200 Series
Manufacturer: Synapse Wireless
Beta
⌘K
RF TXRX MOD 802.15.4 CHIP SMD
| Part | Mounting Type | Frequency | Power - Output | Serial Interfaces | Memory Type | Memory Size (Flash) | RF Family/Standard | Current - Transmitting | Data Rate | Antenna Type | Sensitivity | Current - Receiving | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Modulation | Memory Size | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Synapse Wireless | Surface Mount | 2.4 GHz | 3 dBm | UART | Flash | 128 kB | 802.15.4 | 22.5 mA | 2 Mbps | Chip Integrated | -100 dBm | 20.5 mA | Module | -40 °C | 85 °C | ||||
 Synapse Wireless | Surface Mount | 2.4 GHz | 3 dBm | SPI UART | EEPROM Flash | 128 kB | 802.15.4 | 22.5 mA | 2 Mbps | Chip + U.FL Integrated | -100 dBm | 20.5 mA | Module | -40 °C | 85 °C | O-QPSK | 4 kB | 3.6 V | 2 V |
