SLA-230 Series
Manufacturer: ATC
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
PHASE MONITORING RELAY
| Part | Delay Time (Minimum) | Delay Time (Maximum) | Contact Rating (Current) | Voltage - Supply | Output Type | Circuit | Type | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Trip Status |
|---|---|---|---|---|---|---|---|---|---|---|---|

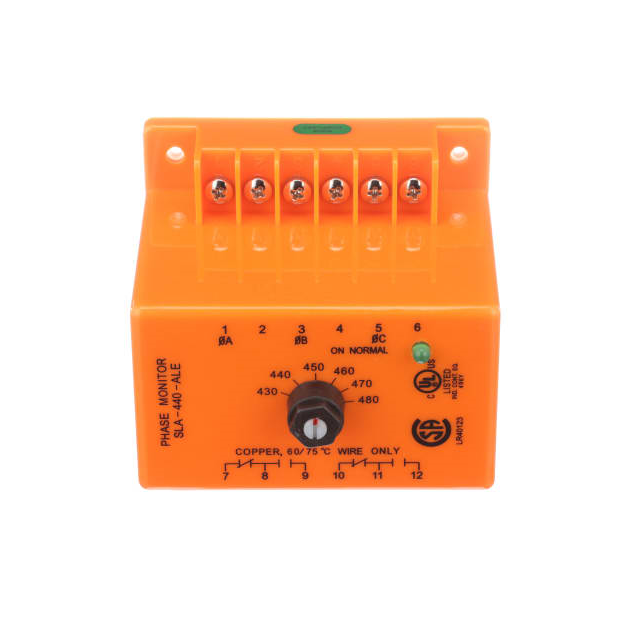

 ATC | 0.25 Sec | 0.5 s | 5 A | 230 VAC | Relay | DPDT (2 Form C) | Phase Loss Phase Sequence Voltage Sensing AC | 0 °C | 55 °C | Chassis Mount | Energized High Low |

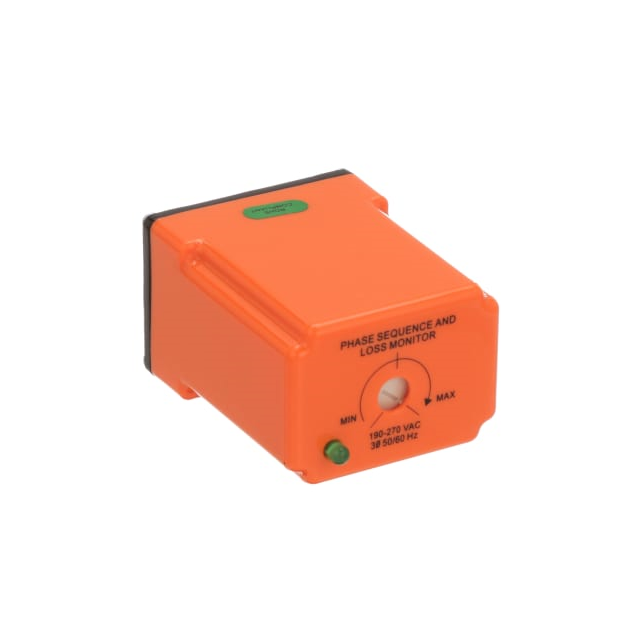

 ATC | 0.25 Sec | 0.5 s | 10 A | 230 VAC | Relay | SPDT (1 Form C) | Phase Loss Phase Sequence Voltage Sensing AC | 0 °C | 55 °C | Socketable | Energized High Low |
