Automotive IPD 1ch Low Side Switch
Description
AI
The BV1LB045FPJ-C is an automotive 1ch low side switch IC, which has built-in over current protection function, thermal shutdown function and active clamp function.
Beta
⌘K
Automotive IPD 1ch Low Side Switch
Automotive IPD 1ch Low Side Switch
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Supply (Vcc/Vdd) | Switch Type | Ratio - Input:Output | Rds On (Typ) | Package / Case | Number of Outputs | Input Type | Output Type | Fault Protection | Current - Output (Max) [Max] | Output Configuration | Qualification | Interface | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

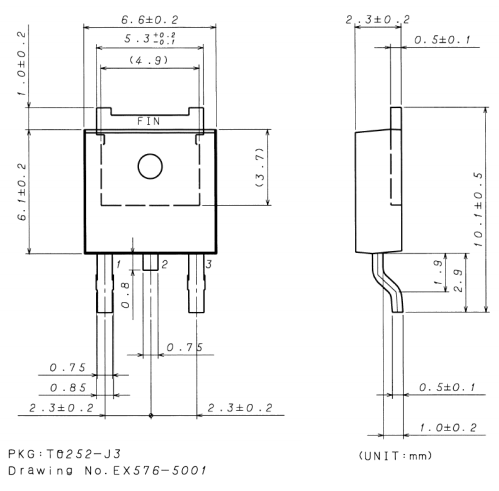

 Rohm Semiconductor | 5.5 V | 3 V | Not Required | General Purpose | 1:1 | 45 mOhm | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 1 | CMOS | N-Channel | Current Limiting (Fixed) Over Temperature | 18 A | Low Side | AEC-Q100 | On/Off | TO-252-J3 | Surface Mount | -40 °C | 150 °C | Automotive |
