ISL28133 Series

Single Micropower, Chopper Stabilized, RRIO Operational Amplifier

Manufacturer: Renesas Electronics Corporation

Catalog

Single Micropower, Chopper Stabilized, RRIO Operational Amplifier

Part	Gain Bandwidth Product	Package / Case	Amplifier Type	Number of Circuits	Current - Supply	Supplier Device Package	Output Type	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Board Type	Supplied Contents	Utilized IC / Part	Current - Supply (Main IC)	Channels per IC	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]
Renesas Electronics Corporation ISL28133FEZ-T7	400 kHz	5-TSSOP SC-70-5 SOT-353	Zero-Drift	1	18 µA	SC-70-5	Rail-to-Rail	2 çV	125 °C	-40 °C	Surface Mount	1.8 V	0.2 V/µs	30 pA	5.5 V
Renesas Electronics Corporation ISL28133FHZ-T7	400 kHz	SC-74A SOT-753	Zero-Drift	1	18 µA	SOT-23-5	Rail-to-Rail	2 çV	125 °C	-40 °C	Surface Mount	1.8 V	0.2 V/µs	30 pA	5.5 V

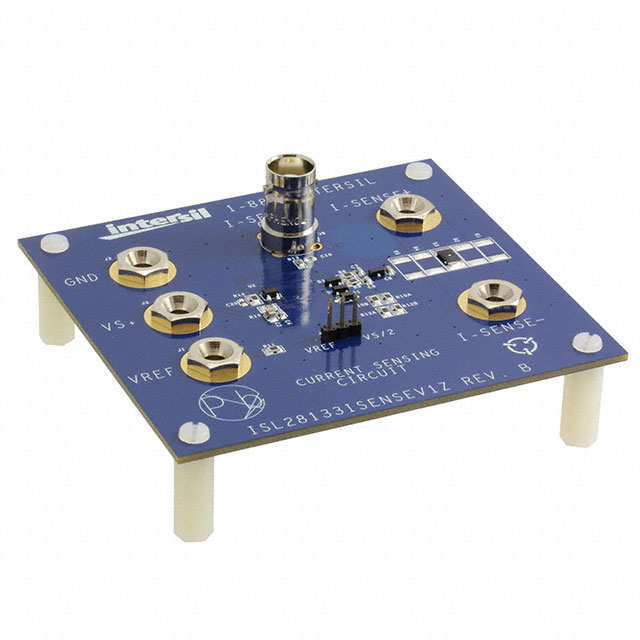

Renesas Electronics Corporation ISL28133ISENSEV1Z			Chopper (Zero-Drift)				Rail-to-Rail Single-Ended						0.2 V/µs			Fully Populated	Board(s)	ISL28133	18 µA	1 - Single	5.5 V	1.65 V
Renesas Electronics Corporation ISL28133FHZ-T7A	400 kHz	SC-74A SOT-753	Zero-Drift	1	18 µA	SOT-23-5	Rail-to-Rail	2 çV	125 °C	-40 °C	Surface Mount	1.8 V	0.2 V/µs	30 pA	5.5 V

Catalog

Single Micropower, Chopper Stabilized, RRIO Operational Amplifier

Description

The ISL28133 is a single micropower, chopper stabilized operational amplifier that is optimized for single supply operation from 1.8V to 5.5V. Its low supply current of 18µA and wide input range enable the ISL28133 to be an excellent general purpose op amp for a range of applications. The ISL28133 is ideal for handheld devices that operate off 2AA or single Li-ion batteries. The ISL28133 is available in the 5 Ld SOT-23, the 5 Ld SC70 and the 6 Ld 1. 6mmx1. 6mm µTDFN packages. All devices operate over the extended temperature range of -40°C to +125°C.
