COM-212 Series

Manufacturer: SparkFun

Catalog

14-SEGMENT ALPHANUMERIC DISPLAY

Part	Display Type	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Power Dissipation (Max) [Max]	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [Min]	Voltage - Forward (Vf) (Typ) [Max]	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Package / Case [y]	Package / Case [x]	Number of Characters	Current - Test	Millicandela Rating [Min]	Millicandela Rating [Max]

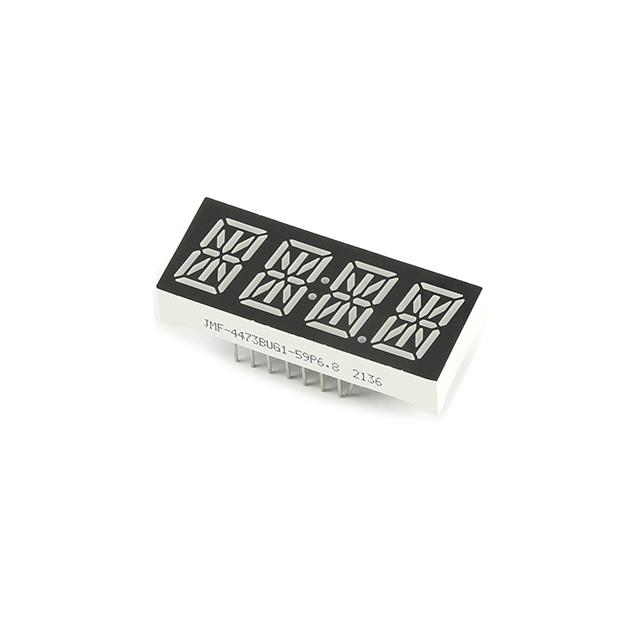

SparkFun COM-21212	14-Segment Alphanumeric	0.47 in	11.85 mm	Common Anode	80 mW	522 nm	2.7 V	3.6 V	Green	1.575 "	0.63 in	40 mm	0.315 in	16 mm	8 mm	16-DIP	12.15 mm	0.478 in	4	20 mA	280 mcd	300 mcd
SparkFun COM-21215	14-Segment Alphanumeric	0.47 in	11.85 mm	Common Anode	70 mW	398 nm	2.7 V	3.6 V	Purple	1.575 "	0.63 in	40 mm	0.315 in	16 mm	8 mm	16-DIP	12.15 mm	0.478 in	4	20 mA	65 mcd	70 mcd
SparkFun COM-21213	14-Segment Alphanumeric	0.47 in	11.85 mm	Common Anode	70 mW	15000 nm	2.7 V	3.6 V	White	1.575 "	0.63 in	40 mm	0.315 in	16 mm	8 mm	16-DIP	12.15 mm	0.478 in	4	20 mA	65 mcd	70 mcd

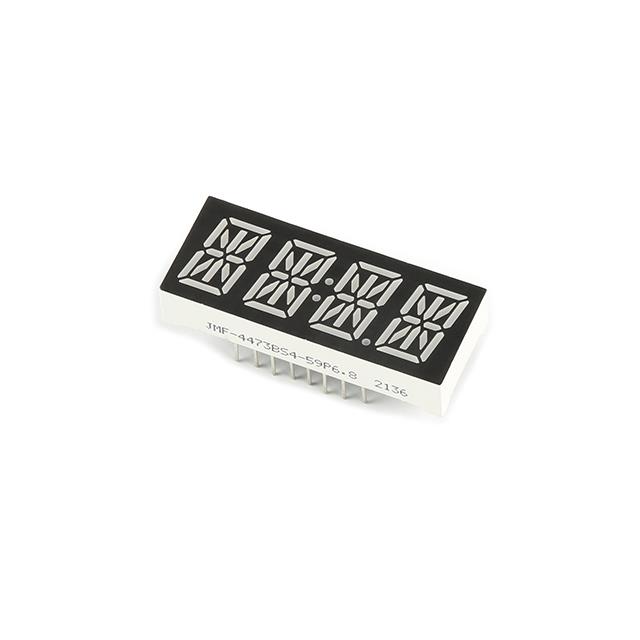

SparkFun COM-21217	14-Segment Alphanumeric	0.47 in	11.85 mm	Common Anode	50 mW	623 nm	1.8 V	2.4 V	Red	1.575 "	0.63 in	40 mm	0.315 in	16 mm	8 mm	16-DIP	12.15 mm	0.478 in	4	20 mA	80 mcd	94 mcd

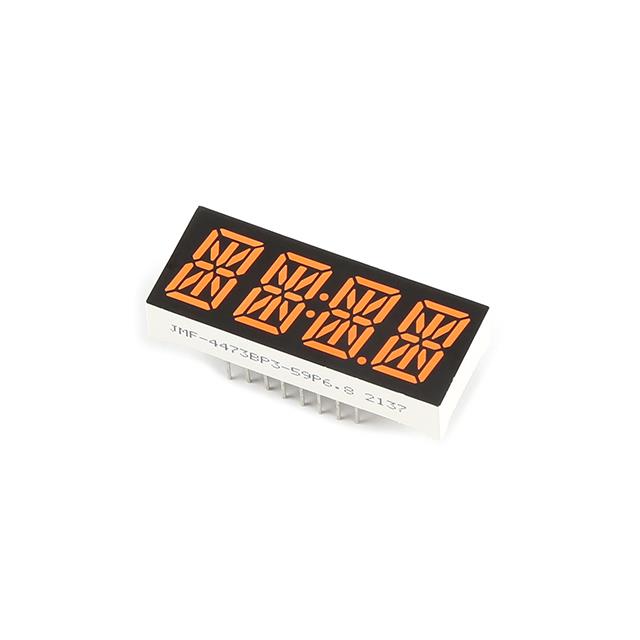

SparkFun COM-21214	14-Segment Alphanumeric	0.47 in	11.85 mm	Common Anode	70 mW	380 nm	2.7 V	3.6 V	Pink	1.575 "	0.63 in	40 mm	0.315 in	16 mm	8 mm	16-DIP	12.15 mm	0.478 in	4	20 mA	65 mcd	70 mcd

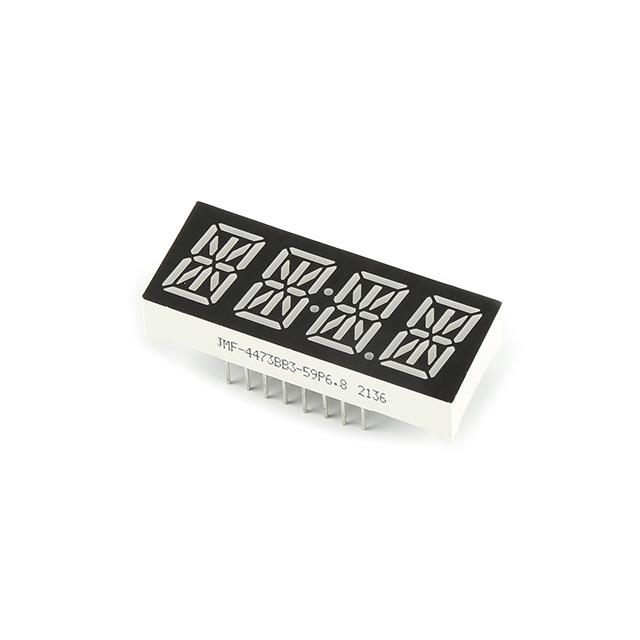

SparkFun COM-21216	14-Segment Alphanumeric	0.47 in	11.85 mm	Common Anode	70 mW	457 nm	2.7 V	3.6 V	Blue	1.575 "	0.63 in	40 mm	0.315 in	16 mm	8 mm	16-DIP	12.15 mm	0.478 in	4	20 mA	90 mcd	95 mcd
