90194 Series
Manufacturer: Preci-Dip
Beta
⌘K

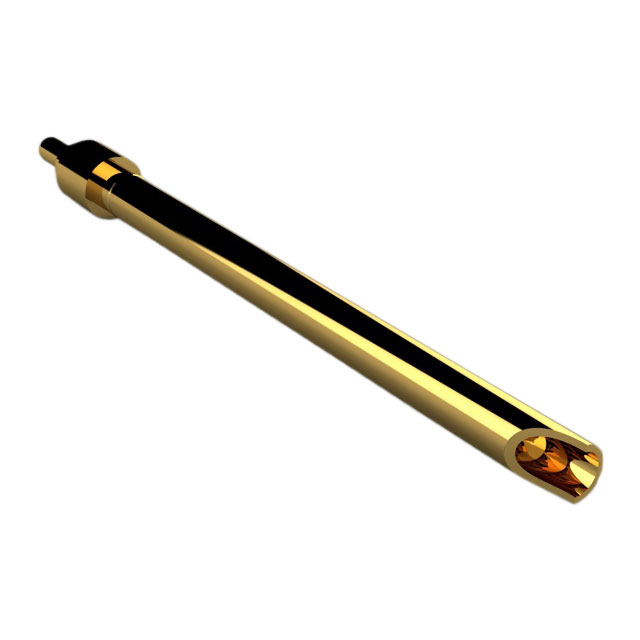

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Initial | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Current Rating (Amps) | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 20.39 gf | 0.25 Ám | 10 Áin | Sleeve & Plunger (Pogo Pins) | 8.76 mm | 0.345 in | 1.68 mm | 0.066 " | 40000 | 0.04 in | 1.02 mm | 0.423 in | 10.75 mm | Solder Cup Through Hole | 3 A | Brass Alloy | Gold |
