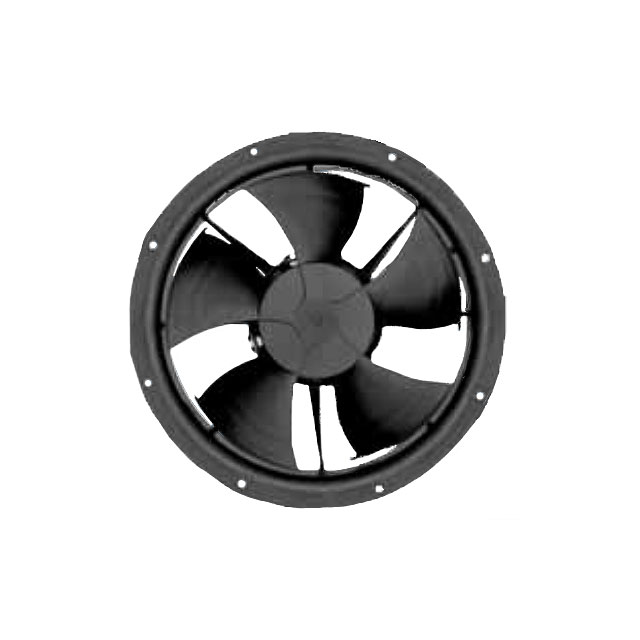

W1G200 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
EC FANS EC AXIAL FAN, 200X46MM ROUND, SICKLED BLADES, 48VDC, 2950RPM, 120PA, IP42
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Power (Watts) | Width [y] | Termination | Bearing Type | Size / Dimension | Size / Dimension [diameter] | Fan Type | Voltage - Rated | Ingress Protection | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Features | RPM | Material - Frame | Noise | Air Flow | Air Flow | Weight [custom] | Weight [custom] | Static Pressure | Static Pressure | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension [z] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 1.3 A | 36 VDC | 57 VDC | Steel | 55 W | 69 mm | 4 Wire Leads | Ball | Round | 200 mm | Tubeaxial | 48 VDC | IP42 | CSA UL | -25 °C | 60 °C | PWM Control Speed Sensor (Tach) | 2950 RPM | |||||||||||||
ebm-papst Inc. | Ball | Tubeaxial | |||||||||||||||||||||||||||||
 ebm-papst Inc. | 36 VDC | 56 VDC | Steel | 55 W | 80 mm | 2 Wire Leads | Ball | Round | 280 mm | Tubeaxial | 48 VDC | CSA UL | Aluminum | 60 dB(A) | 588 CFM | 16.46 m³/min | 3.3 lbs | 1.5 kg | |||||||||||||
ebm-papst Inc. | 16 VDC | 28 V | Steel | 55 W | 80 mm | 2 Wire Leads | Ball | Round | 280 mm | Tubeaxial | 24 VDC | CSA UL | Aluminum | 60 dB(A) | 588 CFM | 16.46 m³/min | 3.3 lbs | 1.5 kg | |||||||||||||
 ebm-papst Inc. | 150 mA | Steel | 10 W | 76.4 mm | 2 Position Rectangular Connector | Ball | Round | 220 mm | Tubeaxial | 115 VAC | IP54 - Dust Protected Water Resistant | CSA UL | 1300 RPM | Polypropylene (PP) | |||||||||||||||||
ebm-papst Inc. | 36 VDC | 56 VDC | Steel | 55 W | 80 mm | 2 Wire Leads | Ball | Round | 280 mm | Tubeaxial | 48 VDC | CSA UL | Aluminum | 60 dB(A) | 588 CFM | 16.46 m³/min | 3.3 lbs | 1.5 kg | |||||||||||||
ebm-papst Inc. | 0.24 A | Polyamide (PA) Nylon | 31 W | 78.5 mm | 3 Wire Leads with Splice Terminals | Ball | Round | 250 mm | Tubeaxial | 230 VAC | IP55 - Dust Protected Water Resistant | CCC CE CSA EAC UL VDE | -30 ░C | 50 °C | Thermal Overload Protector (TOP) | 1500 RPM | Polypropylene (PP) | 55 Pa | 0.22 in H2O | ||||||||||||
 ebm-papst Inc. | 36 VDC | 57 VDC | Steel | 45 W | 80 mm | Terminal Block | Ball | Tubeaxial | 48 VDC | CCC CSA EAC UL | -25 °C | 60 °C | 2750 RPM | Aluminum | 60 dB(A) | 591.5 CFM | 16.56 m³/min | 57000 Hrs | 225 mm | 225 mm | 4.7 lbs | 2.1 kg |
