UT0W6 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 10POS INLINE

Part	Housing Color	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type	Number of Positions	Features	Shielding	Orientation	Note	Shell Material	Type	Insert Material	Shell Size - Insert Width	Shell Size - Insert Length	Shell Finish	Fastening Type	Contact Size	Connector Type	Contact Shape	Contact Type	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)

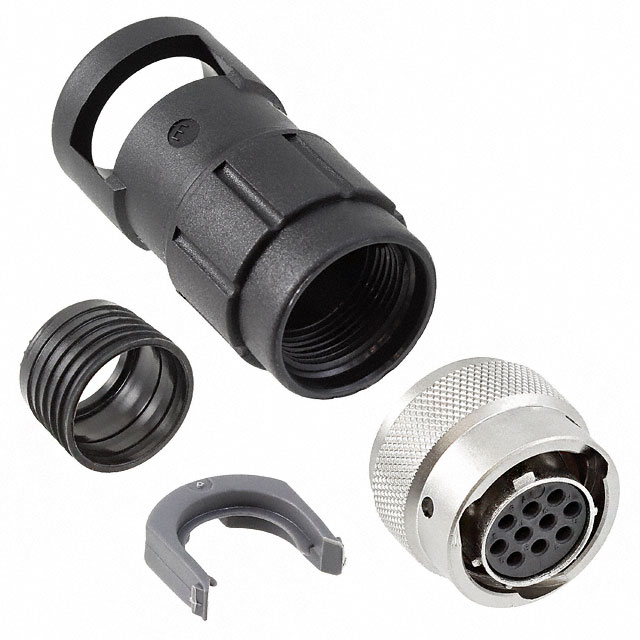

Amphenol Aerospace Operations UT0W6FC1210SH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	10	Backshell Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Female Sockets	Glass Filled Thermoplastic	10 mm	12 mm	Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C

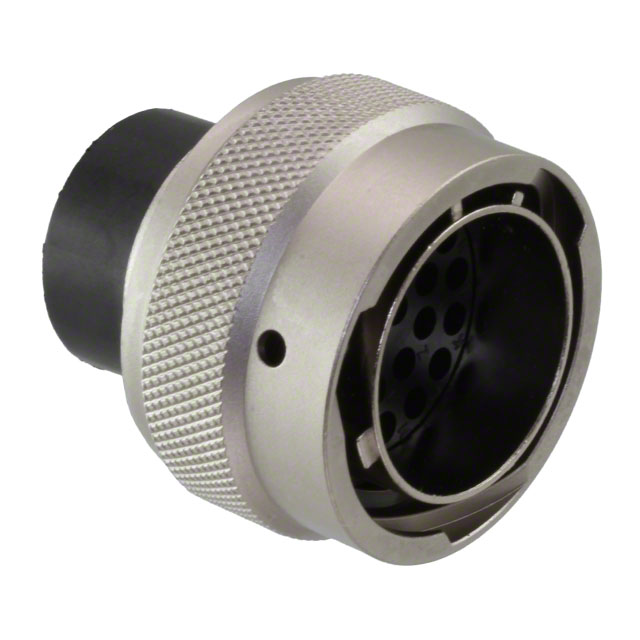

Amphenol Aerospace Operations UT0W61626PH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	26	Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Male Pins	Glass Filled Thermoplastic			Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C	16 S	26

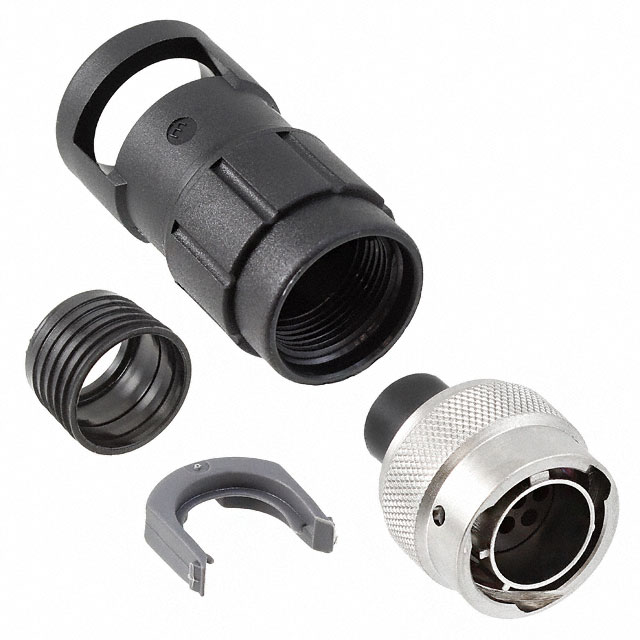

Amphenol Aerospace Operations UT0W6FC1210PH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	10	Backshell Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Male Pins	Glass Filled Thermoplastic	10 mm	12 mm	Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C

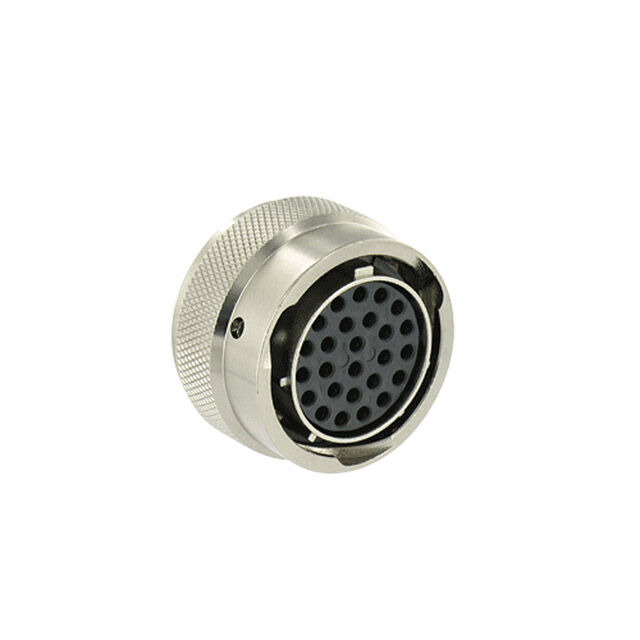

Amphenol Aerospace Operations UT0W61626SH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	26	Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Female Sockets	Glass Filled Thermoplastic			Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C	16 S	26

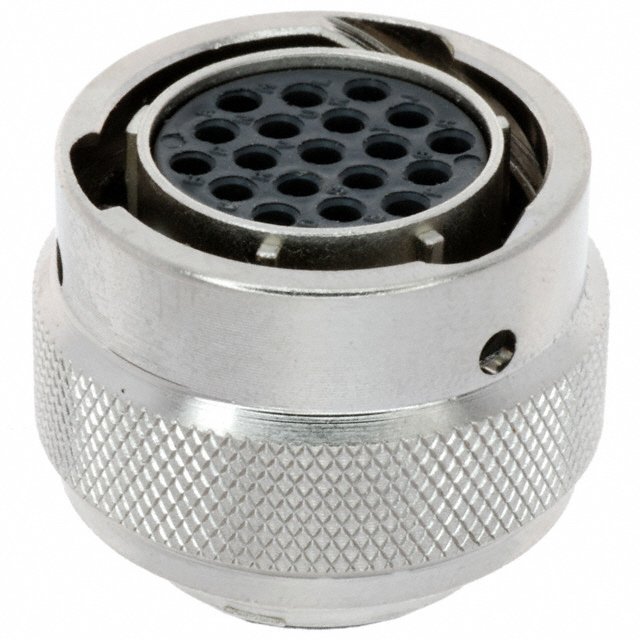

Amphenol Aerospace Operations UT0W61419SH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	19	Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Female Sockets	Glass Filled Thermoplastic			Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C	14 S	19

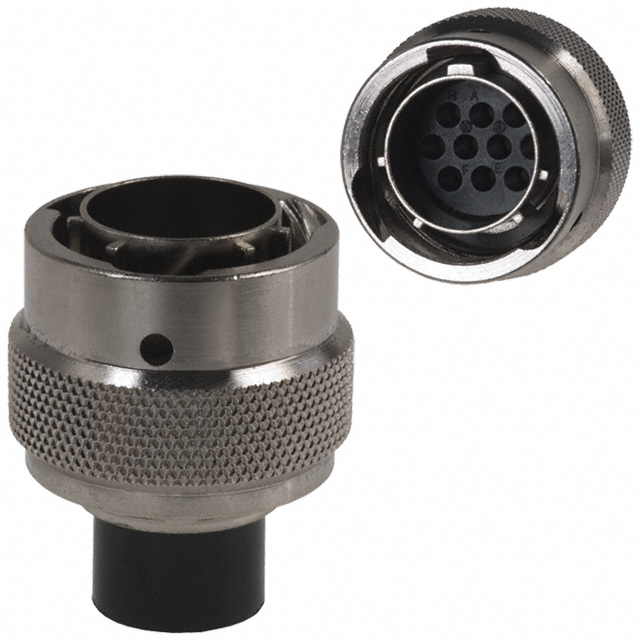

Amphenol Aerospace Operations UT0W61210PH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	10	Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Male Pins	Glass Filled Thermoplastic	10 mm	12 mm	Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C

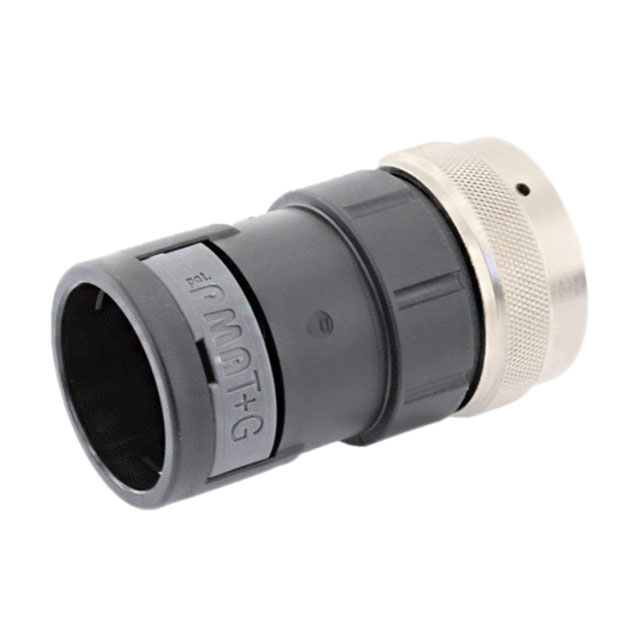

Amphenol Aerospace Operations UT0W6FC2255SH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	55	Backshell Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Female Sockets	Glass Filled Thermoplastic			Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C	22	55

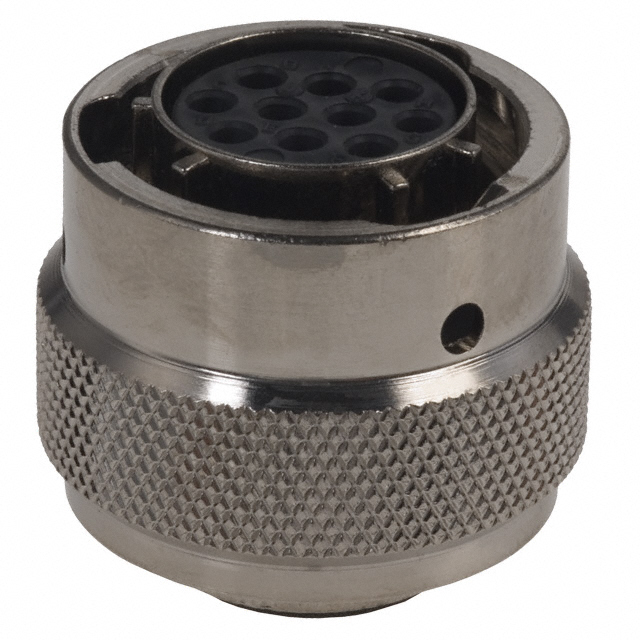

Amphenol Aerospace Operations UT0W61210SH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	10	Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Female Sockets	Glass Filled Thermoplastic	10 mm	12 mm	Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C

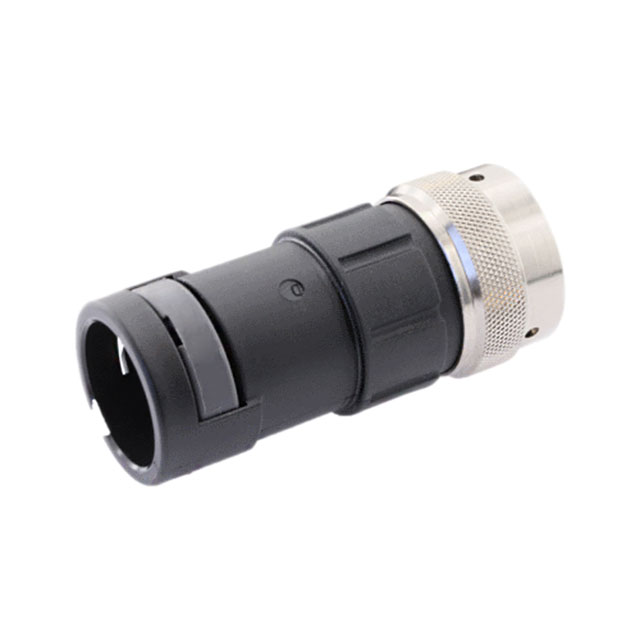

Amphenol Aerospace Operations UT0W6FC1626SH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	26	Backshell Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Female Sockets	Glass Filled Thermoplastic			Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C	16 S	26

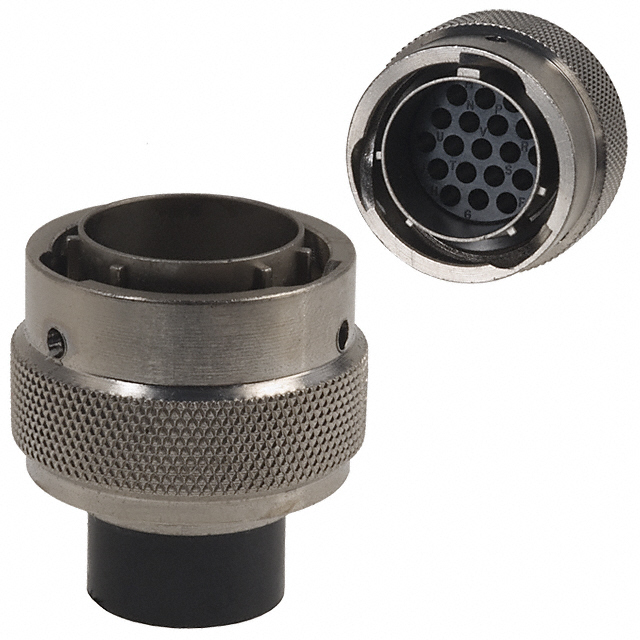

Amphenol Aerospace Operations UT0W61419PH	Silver	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	19	Coupling Nut	Shielded	N (Normal)	Contacts Not Included	Zinc Alloy	For Male Pins	Glass Filled Thermoplastic			Nickel	Bayonet Lock	20	Plug Housing	Circular	Crimp	UL94 V-0	-40 °C	105 °C	14 S	19
