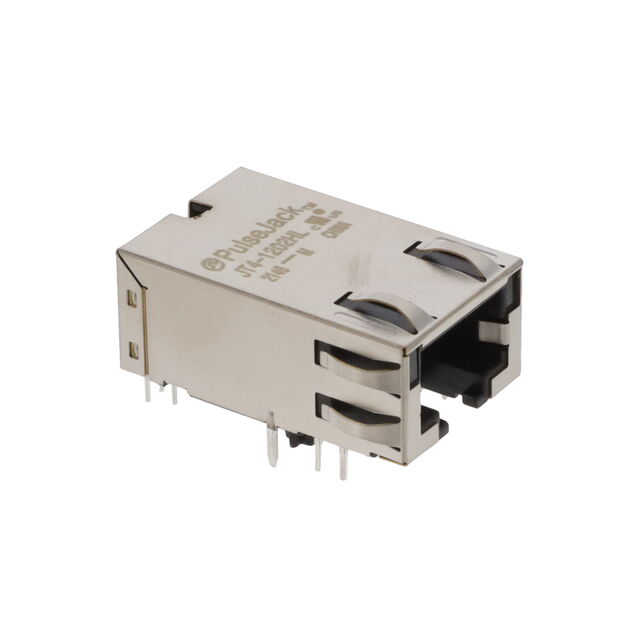

JT4 Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS CONN,RJ45, TD,1X1,1GPP,1:1,T N
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Shield Material | Height Above Board [z] | Height Above Board [z] | Termination | Contact Finish | Tab Direction | Features | Shielding | Contact Material | Number of Cores per Jack | Orientation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Number of Ports | LED Color | Applications | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 50 µin | 1.27 µm | Thermoplastic | Copper Alloy | 11.9 mm | 0.469 in | Solder | Gold | Down | Board Guide | EMI Finger Shielded | Phosphor Bronze | 8 | 90 ° | Through Hole | 70 °C | 0 °C | 1 | 1 | Green - Yellow | 10/100/1000 Base-TX AutoMDIX Power over Ethernet (PoE) | RJ45 |
 Pulse Electronics | 11.9 mm | 0.469 in | Solder | Gold | Down | Board Guide | EMI Finger Shielded | Phosphor Bronze | 8 | 90 ° | Through Hole | 70 °C | 0 °C | 1 | 1 | Green Yellow | 10/100/1000 Base-T AutoMDIX | RJ45 |
