LSQP Series

Catalog

POWER INDUCTORS - SMD 1UH 0805 20% HI CURR

Part	Material - Core	Tolerance	Current Rating (Amps)	Inductance Frequency - Test	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Shielding	Frequency - Self Resonant	Supplier Device Package	Mounting Type	Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Package / Case	DC Resistance (DCR)
Taiyo Yuden LSQPA201212T1R0M	Ferrite	20 %	0.84 A	7.96 MHz	1 µH	-40 C	105 ░C	0.057 in	1.45 mm	700 mA	2 mm	1.25 mm	0.049 "	0.079 in	0805	Unshielded	100 MHz	0805	Surface Mount	Wirewound	247 mOhm
Taiyo Yuden LSQPB201616T330M	Ferrite	20 %	0.24 A	100 kHz	33 µH	-40 C	105 ░C			270 mA	2 mm	1.6 mm	0.063 "	0.079 in	0806 (2016 Metric)	Unshielded	13 MHz	0806	Surface Mount	Wirewound	2.21 Ohm	1.8 mm	0.071 in
Taiyo Yuden LSQPB201210T1R5M	Ferrite	20 %	750 mA	7.96 MHz	1.5 µH	-40 C	105 ░C			700 mA	2 mm	1.25 mm	0.049 "	0.079 in	0805	Unshielded	250 MHz	0805	Surface Mount	Wirewound	234 mOhm	1 mm	0.039 in
Taiyo Yuden LSQPB160808TR50M06	Ferrite	20 %	1.05 A	6 MHz	500 nH	-40 C	105 ░C			1.2 A	1.6 mm		0.031 in	0.063 "	0603	Unshielded	710 MHz		Surface Mount	Wirewound	117 mOhm	1 mm	0.039 in	0.8 mm	1608 Metric
Taiyo Yuden LSQPA201616T100M	Ferrite	20 %	350 mA	2.52 MHz	10 µH	-40 C	105 ░C			380 mA	2 mm	1.6 mm	0.063 "	0.079 in	0806 (2016 Metric)	Unshielded	32 MHz	0806	Surface Mount	Wirewound	1.066 Ohm	1.8 mm	0.071 in

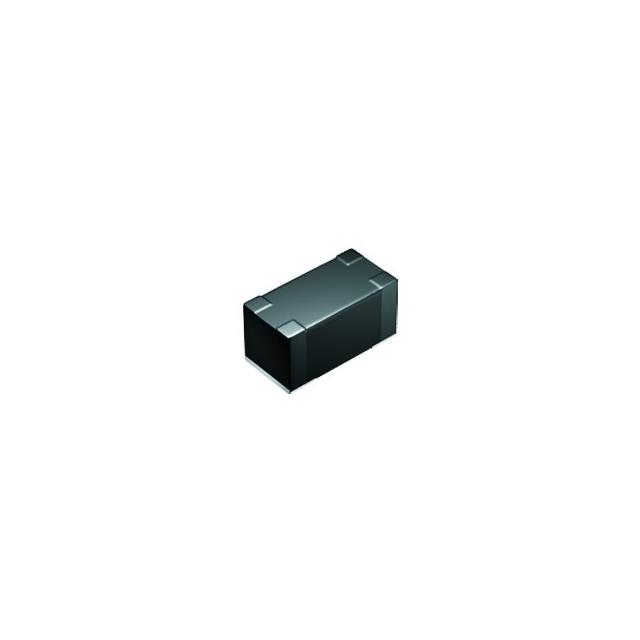

Taiyo Yuden LSQPB201616T1R5M	Ferrite	20 %	820 mA	100 kHz	1.5 µH	-40 C	105 ░C			1.1 A	2 mm	1.6 mm	0.063 "	0.079 in	0806 (2016 Metric)	Unshielded	370 MHz	0806	Surface Mount	Wirewound	195 mOhm	1.8 mm	0.071 in
Taiyo Yuden LSQPA201212T220M	Ferrite	20 %	190 mA	2.52 MHz	22 µH	-40 C	105 ░C	0.057 in	1.45 mm	170 mA	2 mm	1.25 mm	0.049 "	0.079 in	0805	Unshielded	16 MHz	0805	Surface Mount	Wirewound						4.81 Ohm
Taiyo Yuden LSQPB322517T3R3M	Ferrite	20 %	1.2 A	100 kHz	3.3 µH	-40 C	105 ░C			1.45 A	3.2 mm	2.5 mm	0.098 in	0.126 "	1210	Unshielded	140 MHz	1210	Surface Mount	Wirewound		1.7 mm	0.067 in		3225 Metric	144 mOhm
Taiyo Yuden LSQPB322517TR36M	Ferrite	20 %	2.75 A	7.96 MHz	360 nH	-40 C	105 ░C			4.3 A	3.2 mm	2.5 mm	0.098 in	0.126 "	1210	Unshielded	350 MHz	1210	Surface Mount	Wirewound		1.7 mm	0.067 in		3225 Metric	32.5 mOhm
Taiyo Yuden LSQPB322517T150K	Ferrite	10 %	0.53 A	100 kHz	15 µH	-40 C	105 ░C			700 mA	3.2 mm	2.5 mm	0.098 in	0.126 "	1210	Unshielded	20 MHz	1210	Surface Mount	Wirewound	684 mOhm	1.7 mm	0.067 in		3225 Metric
