CF16AA Series
Manufacturer: Hummel AG
Beta
⌘K

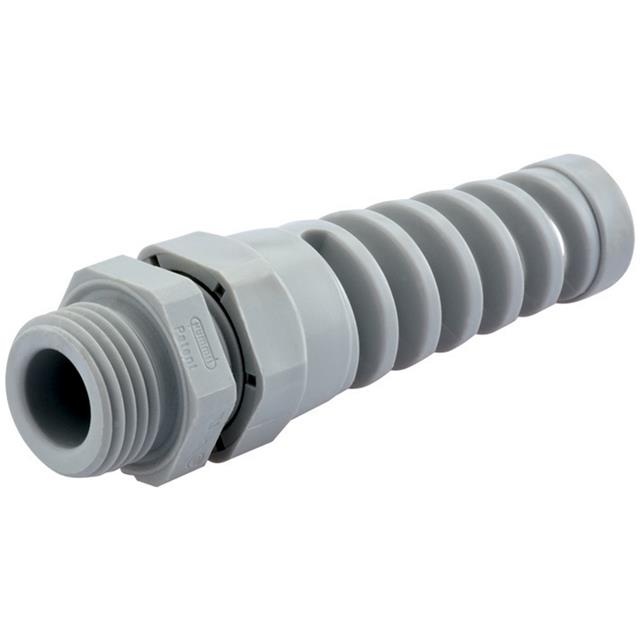

CABLE GLAND 9.91-13.97MM PG16
| Part | Ingress Protection | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Thread Size | Color | Thread Length | Thread Length | Operating Temperature [Min] | Operating Temperature [Max] | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Material | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hummel AG | IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6 | 0.39 in | 9.91 mm | PG16 | Black | 0.39 in | 9.91 mm | -40 C | 100 °C | 13.97 mm | 0.55 in | Polyamide (PA66) Nylon 6/6 | Cable Gland |
 Hummel AG | IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6 | 0.39 in | 9.91 mm | PG16 | Gray | 0.39 in | 9.91 mm | -40 C | 100 °C | 13.97 mm | 0.55 in | Polyamide (PA66) Nylon 6/6 | Cable Gland |
Hummel AG | IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6 | 0.39 in | 9.91 mm | PG16 | Gray | 0.39 in | 9.91 mm | -40 C | 100 °C | 13.97 mm | 0.55 in | Polyamide (PA66) Nylon 6/6 | Cable Gland |
Hummel AG | IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6 | 0.39 in | 9.91 mm | PG16 | Black | 0.39 in | 9.91 mm | -40 C | 100 °C | 13.97 mm | 0.55 in | Polyamide (PA66) Nylon 6/6 | Cable Gland |
