REC10-SRW_DRW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W DC/DC 2KV REG 2:1 18-36VIN 15VOUT

...

Part	Features	Applications	Power (Watts)	Control Features	Voltage - Isolation	Type	Voltage - Output 1	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)

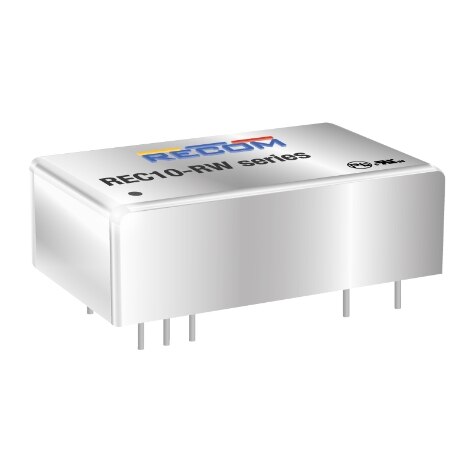

Recom Power REC10-2415SRW/H2/A/M	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	15 V	24-DIP Module 9 Leads	-40 C	75 ░C	667 mA	18 V	Through Hole	36 V	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %
Recom Power REC10-1212DRW/H2/A/M	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	12 V	24-DIP Module 9 Leads	-40 C	75 ░C	416 mA	9 V	Through Hole	18 V	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	416 mA	-12 V
Recom Power REC10-4812DRW/H3/A/M	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	3000 V	Isolated Module	12 V	24-DIP Module 9 Leads	-40 C	75 ░C	416 mA	36 V	Through Hole	75 V	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	416 mA	-12 V
Recom Power REC10-483.3SRW/H2/A/M/SMD	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	3.3 V	24-SMD Module 18 Leads	-40 C	75 ░C	2 A	36 V	Surface Mount	75 V	1	11.2 mm	19.9 mm	1.26 in	0.78 in	32 mm	0.44 in	85 %
Recom Power REC10-4815DRW/H2/A/M	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	15 V	24-DIP Module 9 Leads	-40 C	75 ░C		36 V	Through Hole	75 V	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %		-15 V	333 mA
Recom Power REC10-1215SRW/H3/A/M/X2	OCP Remote On/Off SCP	ITE (Commercial) Medical	10 W	Active High Enable	3000 V	Isolated Module	15 V	24-DIP Module 9 Leads	-40 C	75 ░C	667 mA	9 V	Through Hole	18 V	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %
Recom Power REC10-4812SRW/H2/A/M	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	12 V	24-DIP Module 9 Leads	-40 C	75 ░C	833 mA	36 V	Through Hole	75 V	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %
Recom Power REC10-4805SRW/H2/A/M/SMD-R	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	5 V	24-SMD Module 18 Leads	-40 C	75 ░C	2 A	36 V	Surface Mount	75 V	1	11.2 mm	19.9 mm	1.26 in	0.78 in	32 mm	0.44 in	87 %
Recom Power REC10-1212DRW/H2/A/M/SMD-R	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	12 V	24-SMD Module 18 Leads	-40 C	75 ░C	416 mA	9 V	Surface Mount	18 V	2	11.2 mm	19.9 mm	1.26 in	0.78 in	32 mm	0.44 in	86 %	416 mA	-12 V
Recom Power REC10-1212SRW/H2/A/M/SMD-R	OCP Remote On/Off SCP	ITE (Commercial)	10 W	Active High Enable	2000 V	Isolated Module	12 V	24-SMD Module 18 Leads	-40 C	75 ░C	833 mA	9 V	Surface Mount	18 V	1	11.2 mm	19.9 mm	1.26 in	0.78 in	32 mm	0.44 in	86 %
