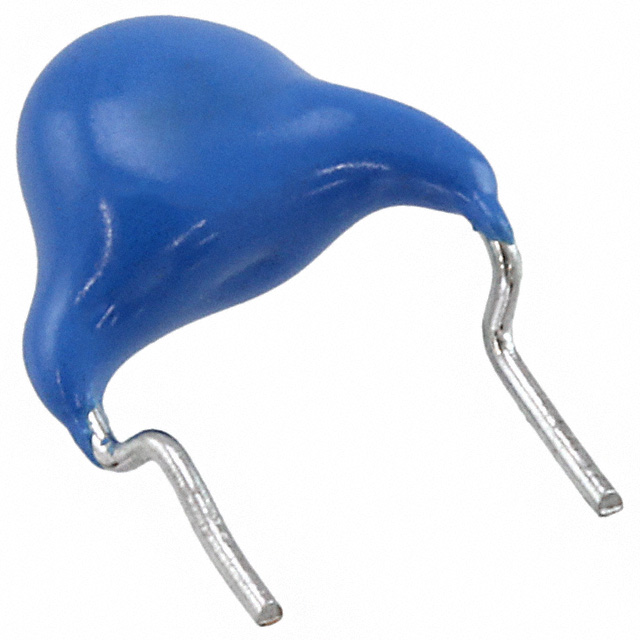

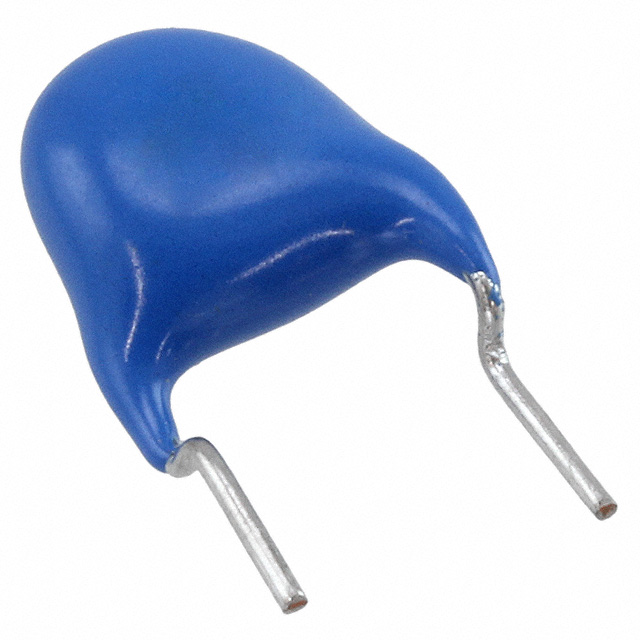

CS Series

Catalog

SAFETY CAPACITORS D: 9MM X1/Y2 470PF 10% LS:7.5MM AECQ200

Part	Tolerance	Lead Style	Voltage - Rated [Max]	Voltage - Rated [Min]	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Temperature Coefficient	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TDK Corporation CS75-B2GA471KAGKA	10 %	Formed Leads - Kinked	440 VAC	300 VAC	0.295 in	7.5 mm	Disc Radial	-55 C	125 °C	AEC-Q200 X1 Y2	B	Through Hole	Safety Automotive	9 mm	0.354 in	470 pF	High Voltage	0.512 "	13 mm
TDK Corporation CS70-B2GA331KANKA	10 %	Formed Leads - Kinked	440 VAC	300 VAC	0.295 in	7.5 mm	Disc Radial	-55 C	125 °C	AEC-Q200 X1 Y2	B	Through Hole	Safety Automotive	7 mm	0.276 in	330 pF	High Voltage
TDK Corporation CS75-B2GA471KYVKA	10 %	Formed Leads - Kinked	440 VAC	300 VAC	0.295 in	7.5 mm	Disc Radial	-25 °C	125 °C	X1 Y2	B	Through Hole	Safety	7.5 mm	0.295 in	470 pF	High Voltage			0.31 "	7.9 mm
TDK Corporation CS70-B2GA331KAVKA	10 %	Formed Leads - Kinked	440 VAC	300 VAC	0.295 in	7.5 mm	Disc Radial	-55 C	125 °C	AEC-Q200 X1 Y2	B	Through Hole	Safety Automotive	7.5 mm	0.295 in	330 pF	High Voltage				0.453 in	11.5 mm
TDK Corporation CS70-B2GA331KYVKA	10 %		440 VAC	300 VAC	0.295 in	7.5 mm	Disc Radial	-25 °C	125 °C	X1 Y2	B	Through Hole	Safety	7 mm	0.276 in	330 pF	High Voltage			0.291 in	7.4 mm
TDK Corporation CS85-B2GA681KANKA	10 %	Formed Leads - Kinked	440 VAC	300 VAC	0.295 in	7.5 mm	Disc Radial	-55 C	125 °C	AEC-Q200 X1 Y2	B	Through Hole	Safety Automotive	9.5 mm	0.374 Dia	680 pF	High Voltage
