TUSB564 Series

USB Type-C™ 8.1-Gbps DP Alt Mode linear redriver crosspoint switch for sink side

Catalog

USB Type-C™ 8.1-Gbps DP Alt Mode linear redriver crosspoint switch for sink side

Part	Supplier Device Package	Voltage Supply Source	Type	Mounting Type	Independent Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]	Circuit [custom]	Circuit [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Supplied Contents	Function

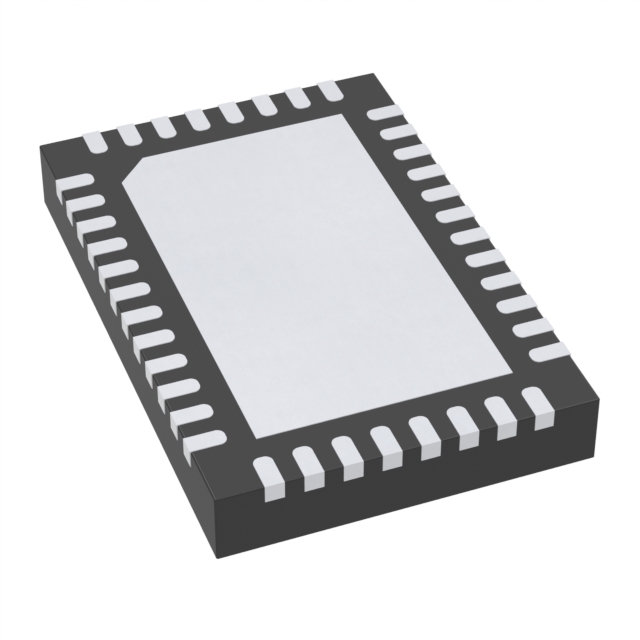

Texas Instruments TUSB564RNQR	40-WQFN (6x4)	Single Supply	Crosspoint Switch	Surface Mount	1	3.6 V	3 V	1	4:4	40-WFQFN Exposed Pad	70 °C	0 °C

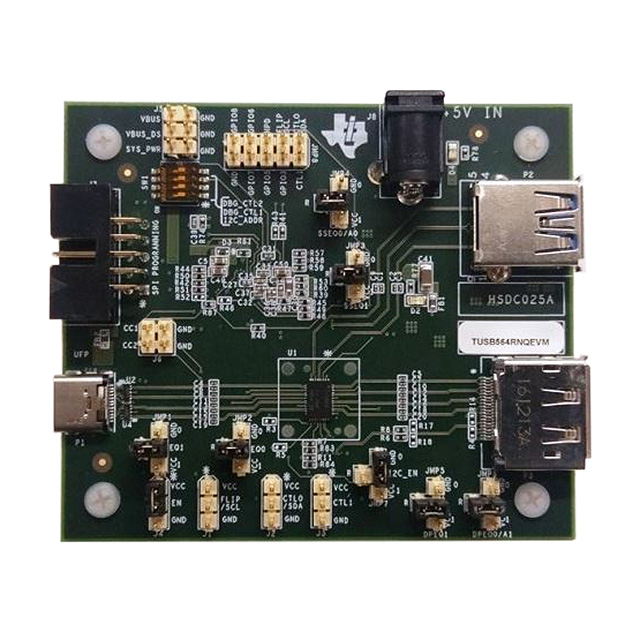

Texas Instruments TUSB564RNQEVM			Interface										TUSB564	Board(s)	USB Type-C®
Texas Instruments TUSB564RNQT	40-WQFN (6x4)	Single Supply	Crosspoint Switch	Surface Mount	1	3.6 V	3 V	1	4:4	40-WFQFN Exposed Pad	70 °C	0 °C

Catalog

USB Type-C™ 8.1-Gbps DP Alt Mode linear redriver crosspoint switch for sink side

Key Features

• USB Type-C™ crosspoint switch supportingUSB 3.1 Gen 1 + 2 DP 1.4 lanes4 DP 1.4 lanesUSB 3.1 Gen 1 up to 5 GbpsDisplayPort 1.4 up to 8.1 Gbps (HBR3)VESA DisplayPort™ alt mode UFP_D redriving crosspoint switch supporting c, d, and e pin assignmentsUltra-low-power architectureLinear redriver with up to 12 dB equalizationTransparent to DisplayPort link trainingAutomatic LFPS de-emphasis control to meet USB 3.1 certification requirementsConfiguration through GPIO or I2CHot-plug capableIndustrial temperature range: –40°C to 85°C ( TUSB564I)Commercial temperature range: 0°C to 70°C ( TUSB564)4 mm × 6 mm, 0.4 mm Pitch WQFN packageUSB Type-C™ crosspoint switch supportingUSB 3.1 Gen 1 + 2 DP 1.4 lanes4 DP 1.4 lanesUSB 3.1 Gen 1 up to 5 GbpsDisplayPort 1.4 up to 8.1 Gbps (HBR3)VESA DisplayPort™ alt mode UFP_D redriving crosspoint switch supporting c, d, and e pin assignmentsUltra-low-power architectureLinear redriver with up to 12 dB equalizationTransparent to DisplayPort link trainingAutomatic LFPS de-emphasis control to meet USB 3.1 certification requirementsConfiguration through GPIO or I2CHot-plug capableIndustrial temperature range: –40°C to 85°C ( TUSB564I)Commercial temperature range: 0°C to 70°C ( TUSB564)4 mm × 6 mm, 0.4 mm Pitch WQFN package

Description

The TUSB564 s a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 5 Gbps and DisplayPort 1.4 up to 8.1 Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA DisplayPort Alt Mode on USB Type-C Standard. The TUSB564 provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3-V supply and comes in a commercial temperature range and industrial temperature range. The TUSB564 s a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 5 Gbps and DisplayPort 1.4 up to 8.1 Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA DisplayPort Alt Mode on USB Type-C Standard. The TUSB564 provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3-V supply and comes in a commercial temperature range and industrial temperature range.
