CSC Series

Catalog

RES THICK FILM NET 27K OHM 2% 1W ±100PPM/°C ISOL CONFORMAL COATED 8-PIN SIP PIN THRU-HOLE BULK

Part	Number of Pins	Tolerance	Mounting Type	Resistor Ratio Drift	Number of Resistors	Resistance	Power Per Element	Height - Seated (Max)	Package Name	Package / Case	Circuit Type	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width

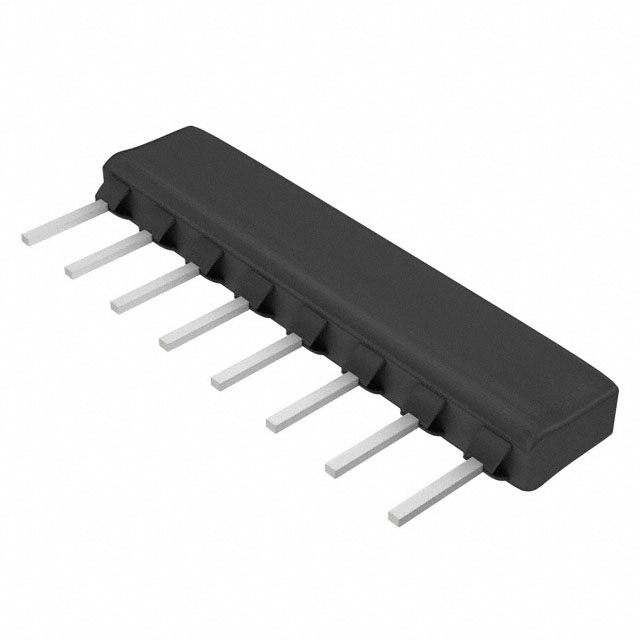

Vishay Dale CSC08A0327K0GPA	8	2 %	Through Hole	50 ppm/°C	4	27 kOhm	300 mW	0.195 in	8-SIP	8-SIP	Isolated	100 ppm/°C	125 °C	-55 °C	0.79 in	0.098 in
Vishay Dale CSC08A01330RGEK	8	2 %	Through Hole	50 ppm/°C	7	330 Ohm	200 mW	0.195 in	8-SIP	8-SIP	Bussed	100 ppm/°C	125 °C	-55 °C	0.79 in	0.098 in

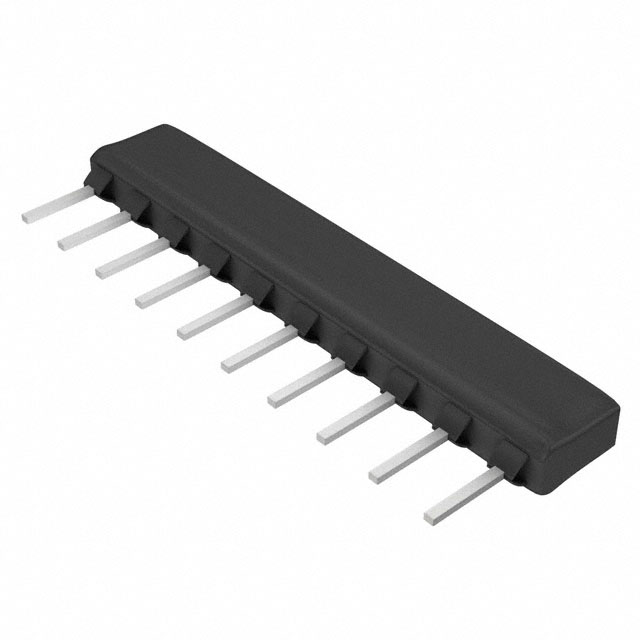

Vishay Dale CSC10A03220RGPA	10	2 %	Through Hole	50 ppm/°C	5	220 Ohm	300 mW	0.195 in	10-SIP	10-SIP	Isolated	100 ppm/°C	125 °C	-55 °C	0.99 in	0.098 in

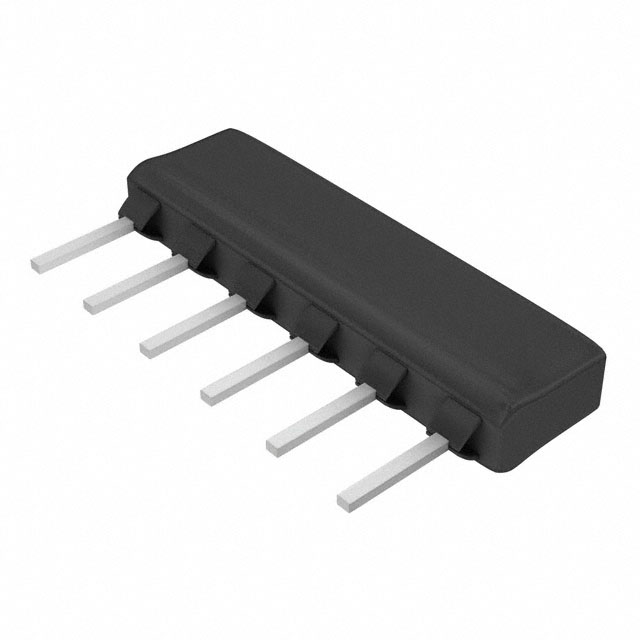

Vishay Dale CSC06A0110K0GEK	6 pins	2 %	Through Hole	50 ppm/°C	5	10 kOhm	200 mW	0.195 in	6-SIP	6-SIP	Bussed	100 ppm/°C	125 °C	-55 °C	0.59 in	0.098 in
Vishay Dale CSC06A03470RGPA	6 pins	2 %	Through Hole	50 ppm/°C	3	470 Ohm	300 mW	0.195 in	6-SIP	6-SIP	Isolated	100 ppm/°C	125 °C	-55 °C	0.59 in	0.098 in
Vishay Dale CSC06A03330RGPA	6 pins	2 %	Through Hole	50 ppm/°C	3	330 Ohm	300 mW	0.195 in	6-SIP	6-SIP	Isolated	100 ppm/°C	125 °C	-55 °C	0.59 in	0.098 in
Vishay Dale CSC10A016K80GPA	10	2 %	Through Hole	50 ppm/°C	9	6.8 kOhm	200 mW	0.195 in	10-SIP	10-SIP	Bussed	100 ppm/°C	125 °C	-55 °C	0.99 in	0.098 in
Vishay Dale CSC10A032K20GPA	10	2 %	Through Hole	50 ppm/°C	5	2.2 kOhm	300 mW	0.195 in	10-SIP	10-SIP	Isolated	100 ppm/°C	125 °C	-55 °C	0.99 in	0.098 in
Vishay Dale CSC10A05121CGEK	10	2 %	Through Hole	150 ppm/°C	16	220 Ohm 270 Ohm	200 mW	0.195 in	10-SIP	10-SIP	Dual Terminator	100 ppm/°C	125 °C	-55 °C	0.99 in	0.098 in
Vishay Dale CSC08A03220RGEK	8	2 %	Through Hole	50 ppm/°C	4	220 Ohm	300 mW	0.195 in	8-SIP	8-SIP	Isolated	100 ppm/°C	125 °C	-55 °C	0.79 in	0.098 in
